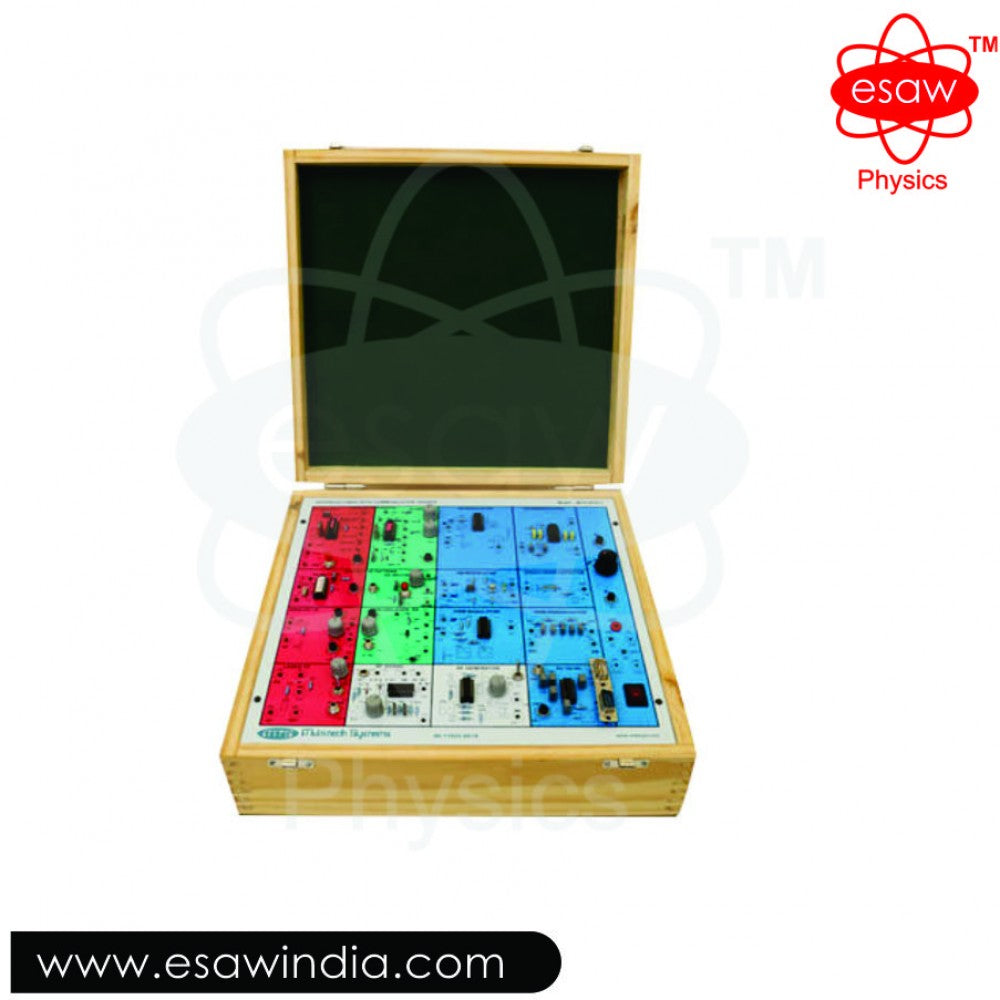

ESAW Fiber Optics Kit (EEC-10349)

Fiber optics kit is designed to demonstrate that how the signals are transmitted in the form of light. Whole kit is sub divided into different parts signal generator, transmitter and receiver. A flexible fiber optics cable is used to transmit the signal from one point to another. Flexible property of cable provides it an alternative means of transmitting information over significant distance using light energy. Light can be modulated at higher frequencies than electrical signal.

SPECIFICATIONS:

1) Function Generator 1 Hz — 10 KHz TTL square wave 1 Hz— 10 KHz Variable Wave

2) Voice communication Voice can be transmitter via. mic. speaker in the kit

3) Analog Signal Bandwidth 350 KHz

4) Digital Width 2.5 MHz

5) RS 232 port for PC communication
