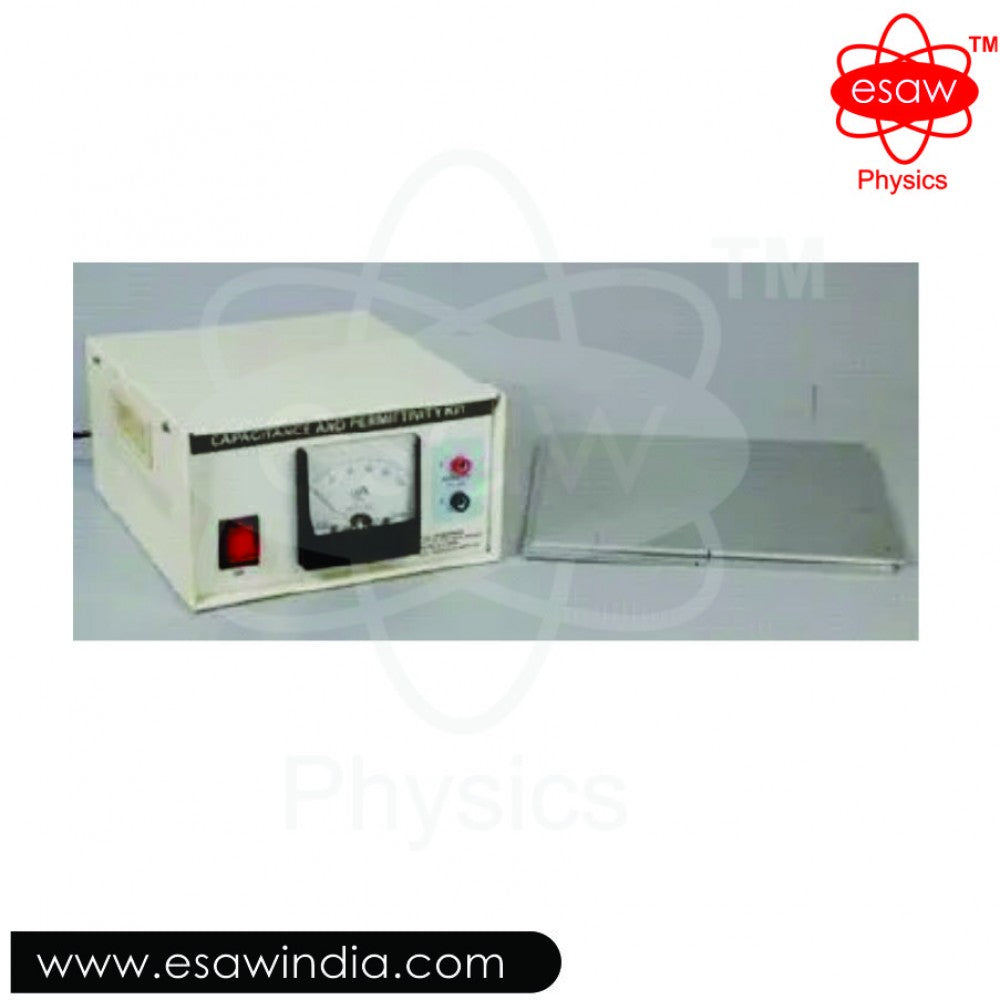

10962 - ESAW Capacitance and Permittivity Kit

Completely self contained : no other measuring instruments are needed. © No calibration required * High sensitivity: change of the order of 0.1 nf.can  easily be detected. © Integrated circuit electronics. * Linearity better than 1% f.s.d

In operation it produces an output current proportional to capacitance.

DESCRIPTION

This kit consists of reed relay switch with it's A.C. supply integrated circuit current amplifier and 0-100 micrometer-housed in acabinet.In_addition,a pair of capacitor plates 0:25m-x0.25m x-4-mm, a Perspex sheet, two capacitors (500 pf each), and setof perspex/ polythene spacers are provided with the kit
