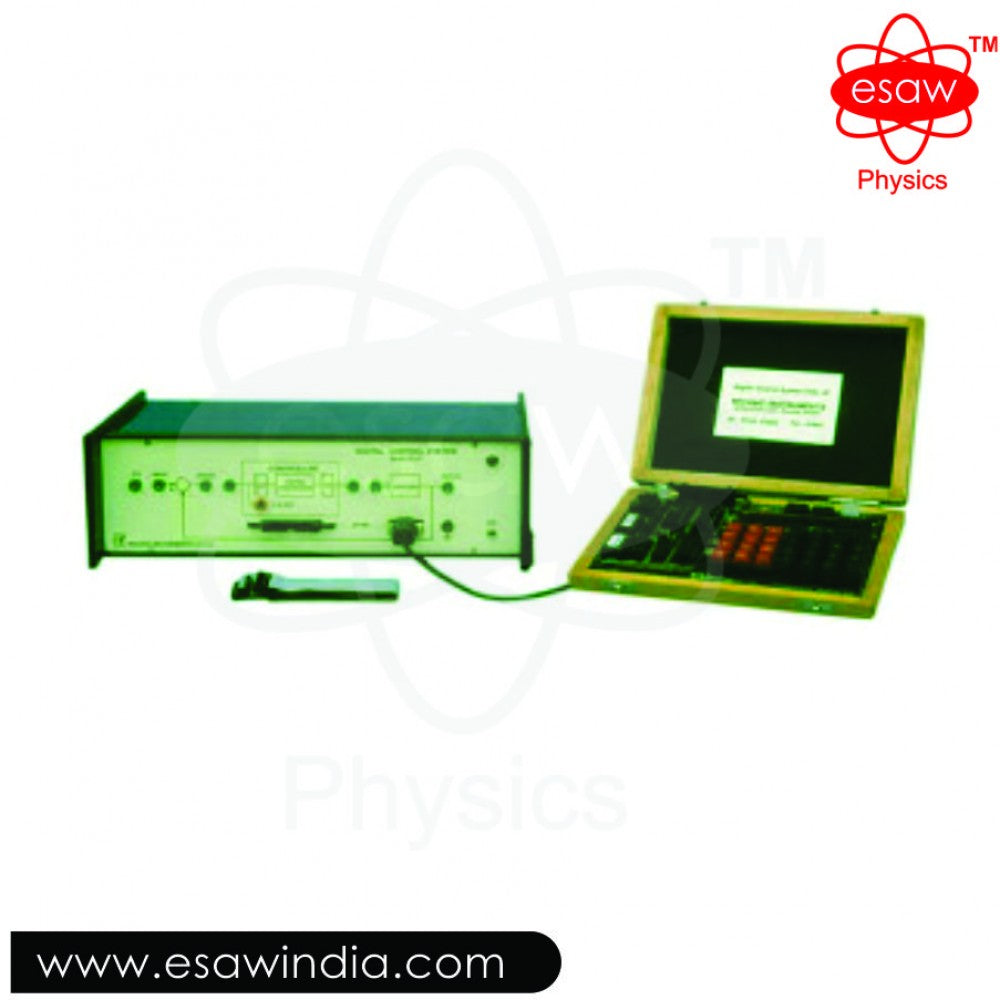

11142 - ESAW Digital Control System

Specifications

* Second or dersimulated process(analog Process) * Built-inD/AandA/Dcircuits(8-bit) * 8085 based P-kit as digital controller with user software in 8K EPROM * 16- bit arithmetic for algorithmic calculations * Square wave test input{internal) * 16 built-in levels of P, | and D gains each. * Complete flexibility for the user to develop own software * IC regulated internal built-in power supplies * Detailed literature and patch cords included * Essential accessory - a CRO

* Digital Controller implementation on pP- kit * Simple Op- amp based analog plant * Design and test new algorithms
* CRO display of response
