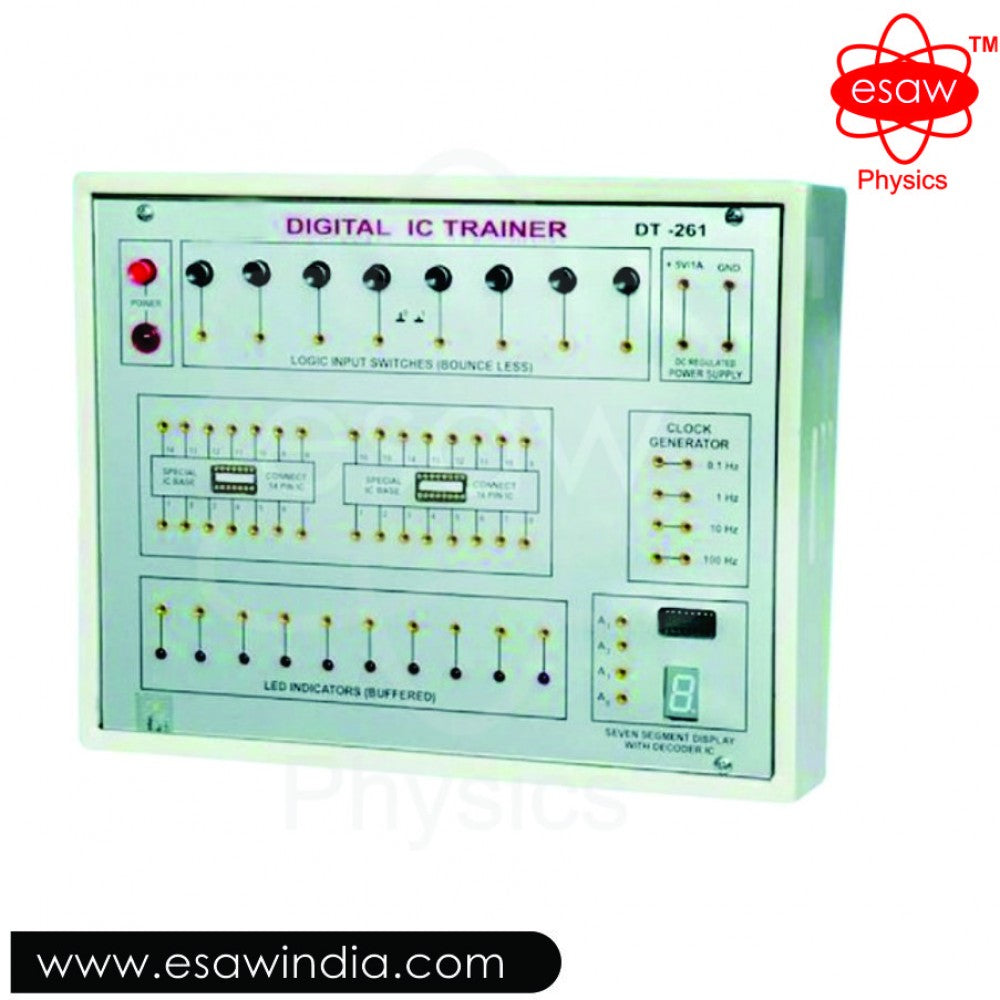

10926 - ESAW Digital IC Trainer

It consists of specially designed brass sockets of 2mm inner diameter which are press fit by special techniques on bakelite panel. Specially designed patchcords (with spring action) of pin diameter 2mm are provided so that the students can make interconnections themselves and varify the truth table as mentioned in User's Manual. Various experiments on logic gates,Flip-Flop & Counters can be done.

Board Consistsoffollowing :

« DC Regulated Power Supply 5V/1Amps. «Special IC Base of 14 Pin for inserting any IC of 14 pins -1No ®Special IC Base of 16 Pin for inserting any IC of 16 pins- 1No. *Logic Input Switches(Bounceless) - 8No. ®LED Indicators (Buffered) - 10No. *Clock Generator - 1No.

*7 Segment Display with DecoderlC 7447 - anQmP- *2mm Interconnection Leads. -10No. 3 Amp. *74 LS 08 (AND), 74 LS 32 (OR), 74 LS 04 (NOT, An pO (NAND) 74 LS 02 (NOR)&74 LS 86 (EX-OR)-1No. 7474 (Dflip Flop 74LS76UUK Flip-Flop) & 7490 (Decadét 3 AMP. Counter) can be mounted on 14 or 16 pin IC Base. *Comprehensive USER's Manual for doing experiments on Logic Gates, Flip- Flops & Decade Counter is provided.
