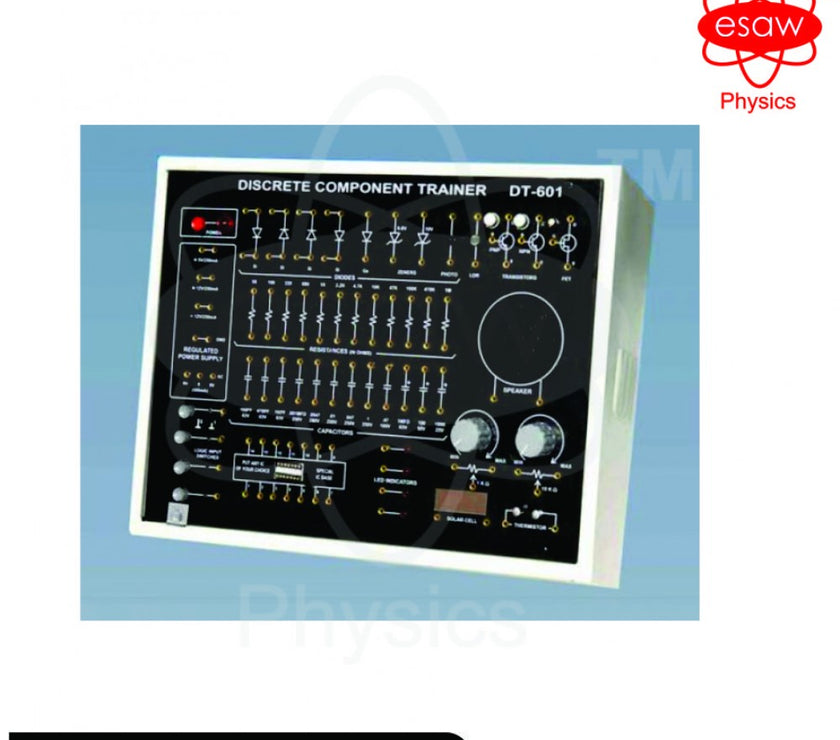

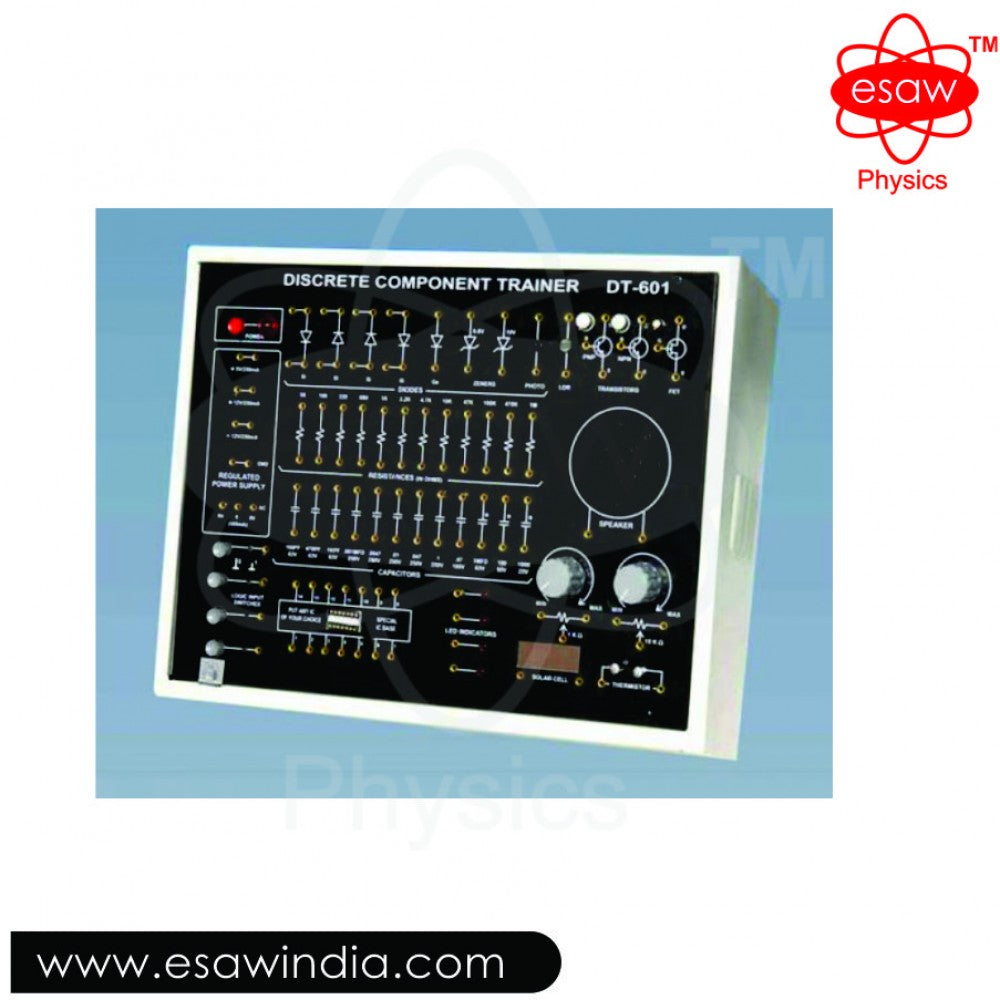

10998 - ESAW Discrete Component Trainer
Lucidly illustrated User's manual unravels analog electronics concepts through brief theoretical reviews followed by experiments, self test questions and exercises. Modularly designed Front Panel contains all commonly used discrete components. It consists of specially designed brass sockets of 2mm inner diameter which are press fit by special techniques on bakelite panel. Specially designed patch cords (with spring action) of pin diameter 2mm are provided so that the student's can make interconnections themsleves and do various experiments.
It consists of following items on main panel : a} Power supply of +5V, +12V,-12Veach of 250mA b) Silicon, Germanium diodes, Zeners. c) PNP & NPN Transistors, FET d) One speaker e) 12 different values & wattage of carbon film resistances. f) 12 assorted values of capacitors from 100PF to 1000uF. g) Integrated Circuit (IC) Base & IC 74LS00- 1No. each h) LED, LDR, Photo diode, Solar Cell i) Logic Switches (4No.)&LED indicators (4No.) etc. J) 2mm interconnection Leads- 10No.
