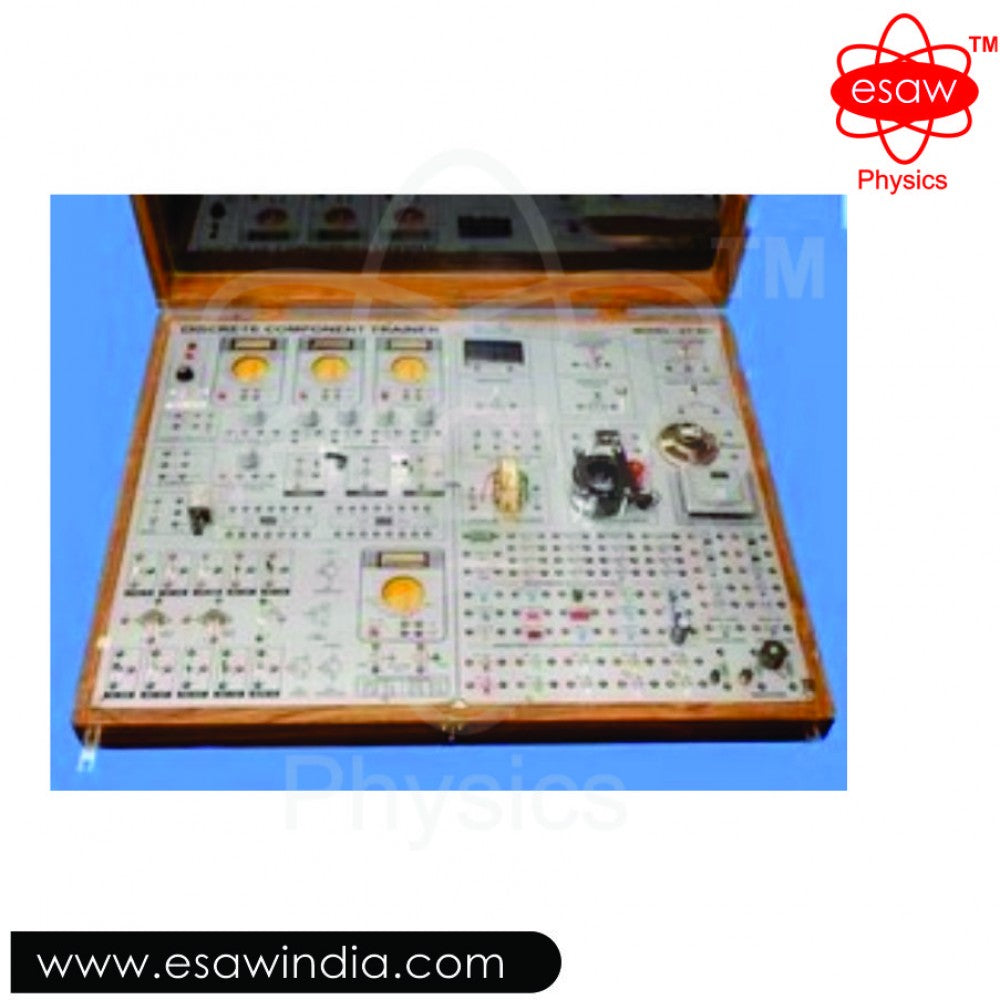

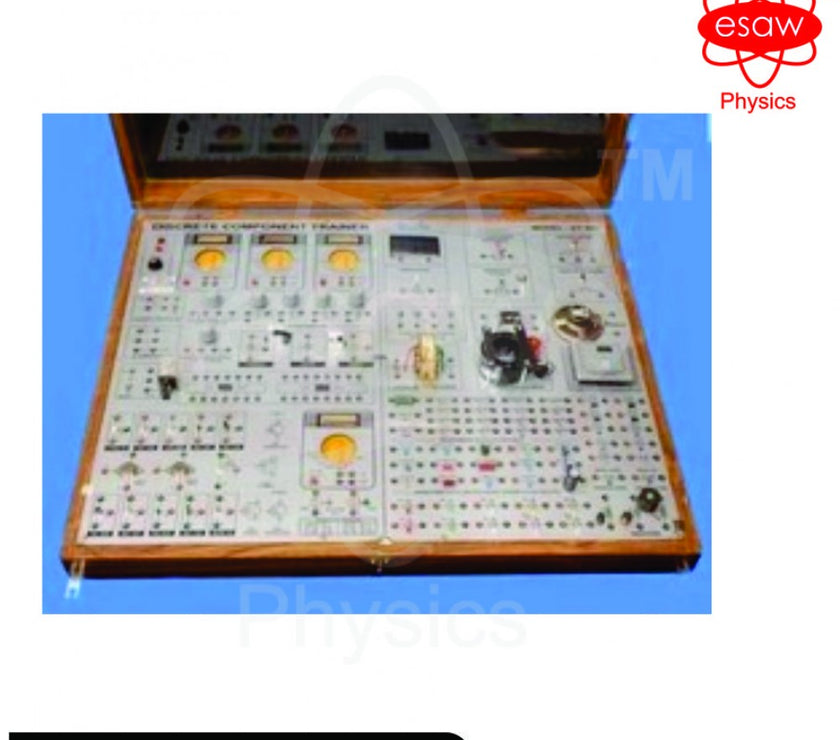

11007 - ESAW Discrete Component Trainer
Variable 0 to +15V/250 mA are provided on front panel. Insulated Socket for 230VACare also provided. Digital Meters, LCD Display for measurement of V, A&ohms. having multiple ranges inV, I&R.
Different Transistors(12 No.),small & big, Power transistor with hFE measurement facility by digital meter. * PN Junction Diode (of 1A & SA) Varactor, Schotty, Zener, Rectifier of 30 Amps. diode, Signal diode, 1 Photo diode, FET, UJT, SCR mounted on front panel. * 20Resistors of different watts, 15 different capacitors, * 2 LED(Green}, 2 LED(Red) 2 LED(Blue} 2 LED(Dual), * 1 LDR, 1 Solar Cell, Traiac / Diac pair, 4 Potentiometers, 2 inductors, Relay, and transformer (PT, CT, etc.)}, 1 speaker are mounted on board.
4 different Switches, 2 IC Base with 5 different Ic’s Fuse with holder, 7 segment with decoder Ic’s. * Suitable Interconnection Leads, 2mm stackable - 20 No. & Comprehensive User’s Manual is also provided.
