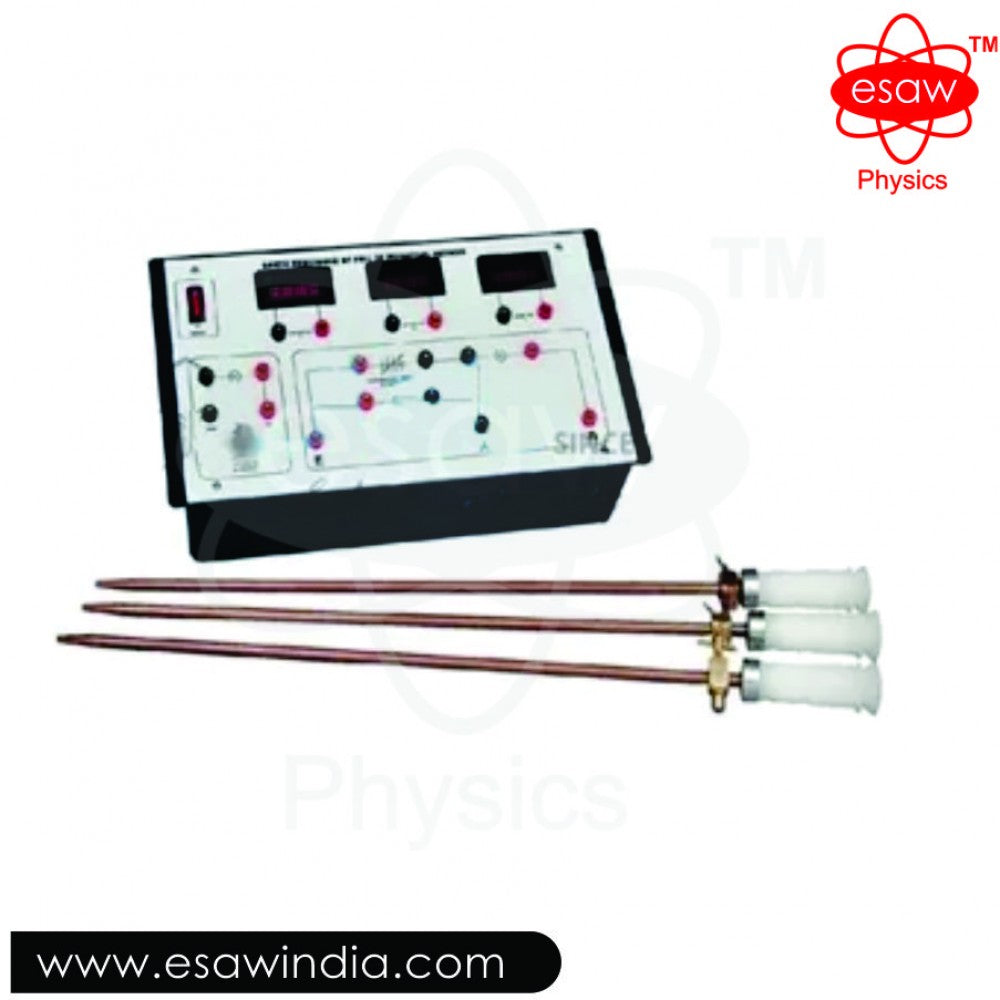

ESAW EEC-10676 Earth Resistance by fall of Potential Method

Technical Specifications:

• One No of Inbuilt power supply of range 0-12VDC / 2 ampere.

• Two No. of Digital panel meter for voltage measurement of Range 0-20V.

• One No. of DPM for Current measurement of range 0-200 mA.

• Three No. of spoke' made of copper 10mm thick & 750mm long with high-density polypropylene handle.

• Circuit Diagram on top panel arrangement is in wooden box having separate space for power & connecting wires
• Dimensions: 470 x 460 x 620mm(L xBxH).

• Power Requirement: Single Phase 220VAC.


Standard Accessories:

• Single point Patch cords for Interconnections (Electrical)
• Connecting Wires for Electrodes of Length 10Meter

• Earth Electrode of Copper 750mm Long & 10mm Thick with High-Density Polypropylene Handle

• Instruction Manual
