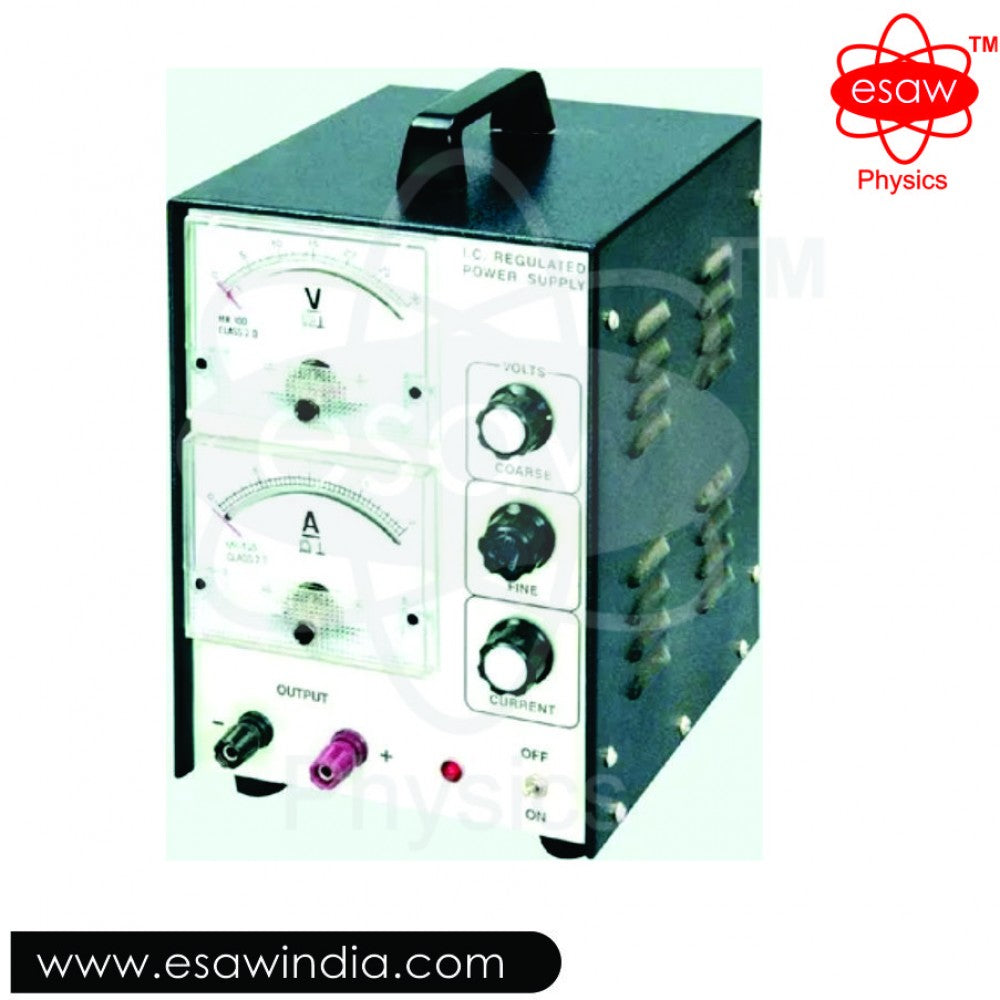

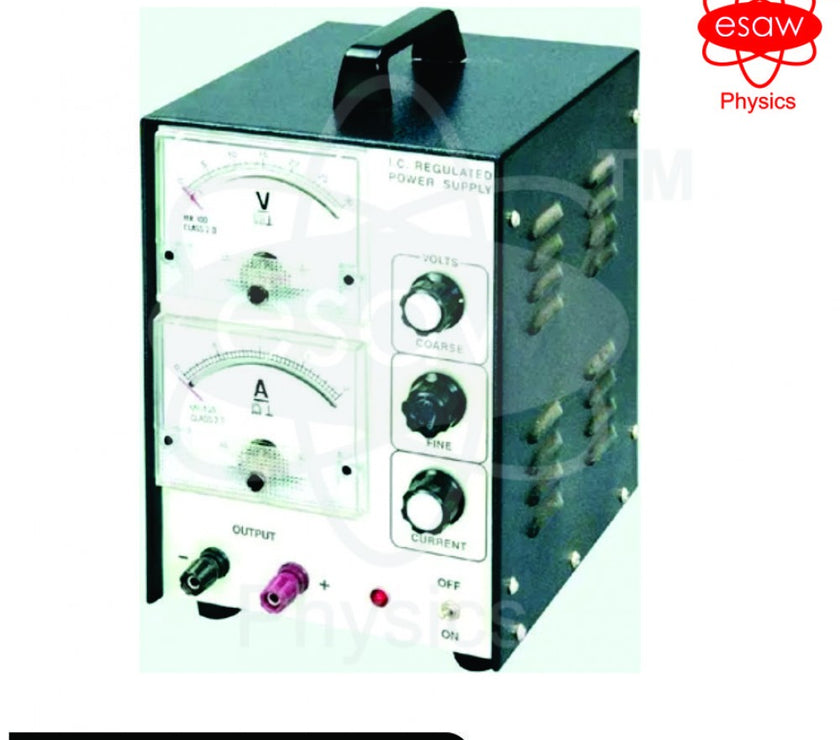

ESAW Analog Regulated Power Supply with two Analog Deluxe Meters (EEC-10538)
Power supplies has been designed and manufactured as per exact engineering standards using superior quality components, offering overload/short circuit protection. A heavy duty stabilized power supply is useful for labs and workshops. The unit has voltmeter, ampere meter, Pilot light, on-off switch, variable power control knob. Coarse and Fine motion knob and two terminals are provided for output with grounded 3-wire power cord with fuse protection.
Specifications:
Line Regulation : 0.01%+ 10%fromne load to full Load
Metering : (MR-100 Deluxe Meter with acrylic cover) Analog meter for simultaneous voltage and current reading.
Ripple and Noise : < 1 mV RMS for low voltage supplies. < 2 mV RMS for high voltage supplies.
Latest technology using ICs, overload and short circuit protected. The following types of stabilized power supplies are available with above specifications.
Output Output Meters
Voltage Current
0-15V 1A 2 Deluxe Meter
0-15V 2A 2Deluxe Meter
0-15V 3A 2 Deluxe Meter
0-15V 5A 2 Deluxe Meter
0-32V 1A 2 Deluxe Meter
0-32V 2A 2 Deluxe Meter
0-30V 3A 2 Deluxe Meter
0-30V 5A 2 Deluxe Meter
0-30V 10A 2 Deluxe Meter
