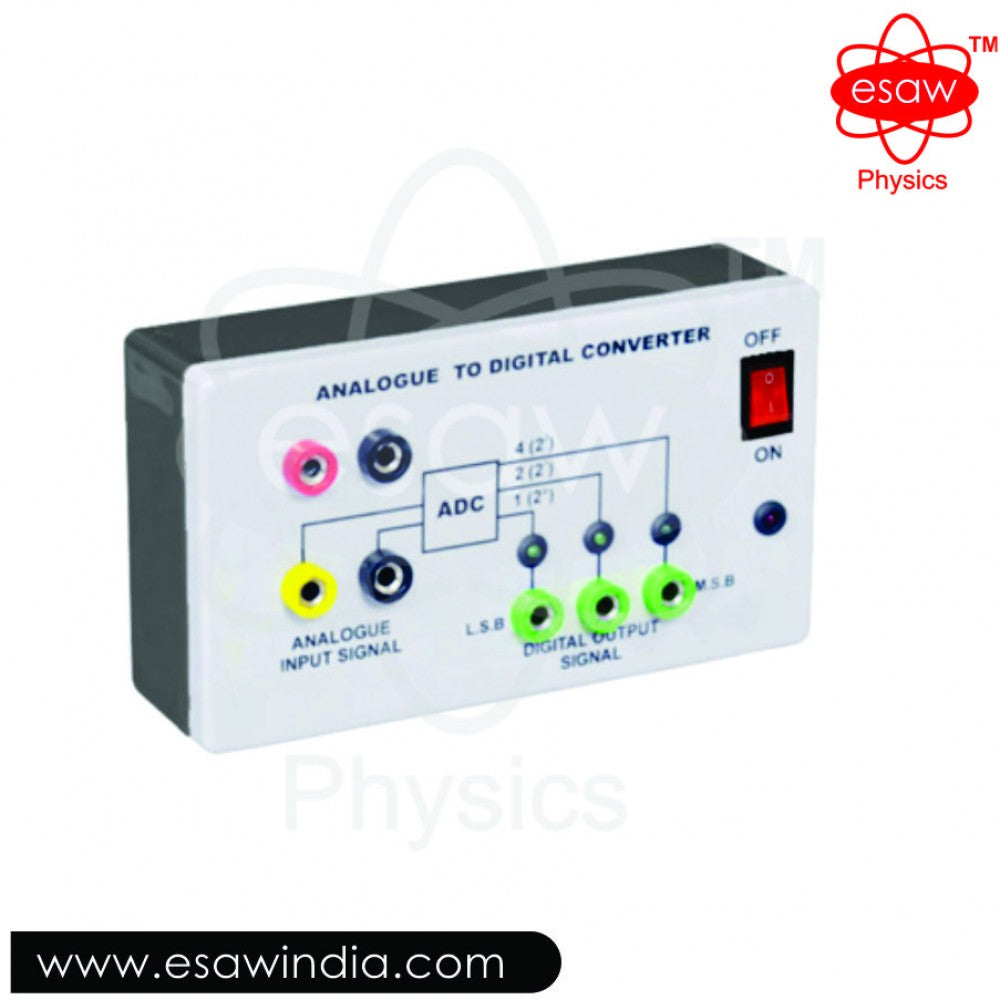

ESAW Analogue To Digital Converter (EEC-10295)

Analogue to digital converter circuit internally fitted inside a plastic molded case (142 x 80 x 40) mm approx. Analogue signal 0-7 V DC given by analogue input sockets is converted into digital output signal in 1 V steps i.e. 001 for 1 V, 010 for 2 V and so on. Three LED's are used for representation of binary digital signal. The output voltage against each LED directly comes out through 4 mm sockets and can be used for coupling it with AC instrument. Operating voltage for the instrument is 12 V DC. For more sensitivity of lower range, a selector toggle switch marked with (0-7 V/0-2 V) is used.
