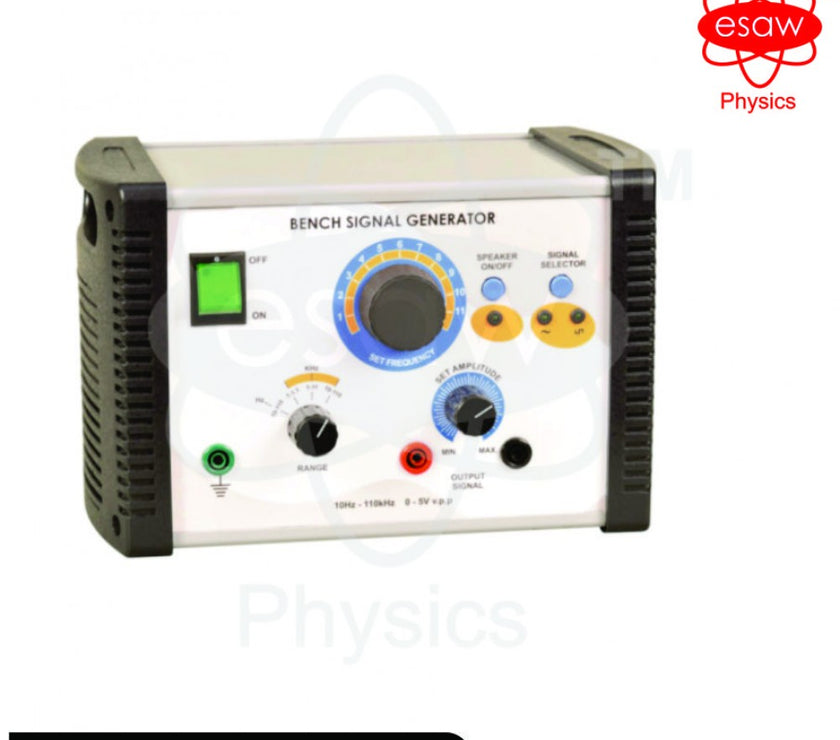

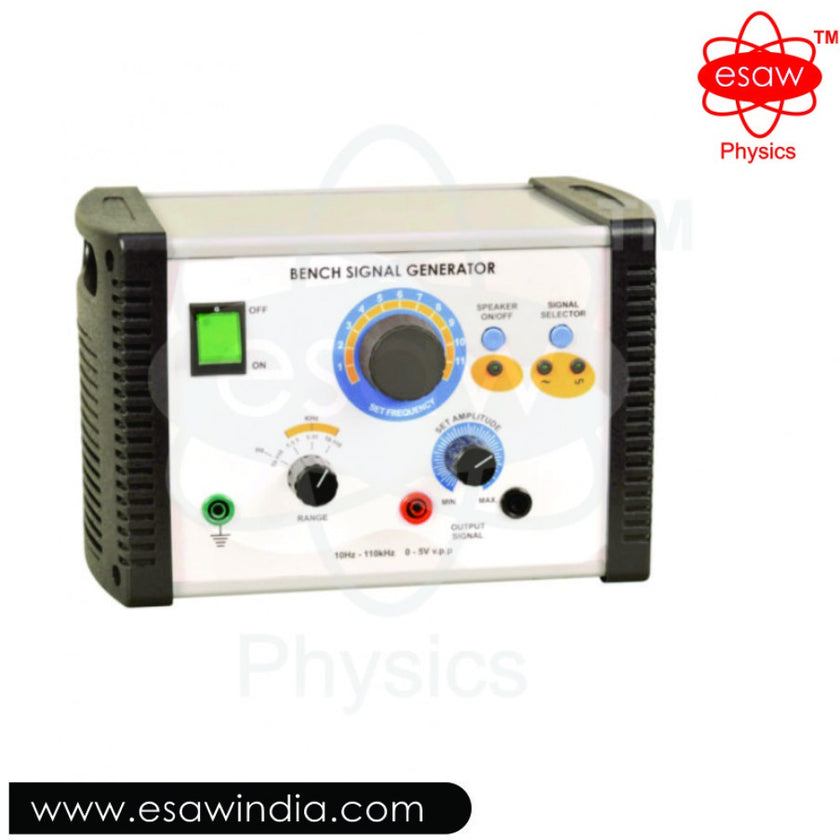

ESAW Bench Signal Generator (EEC-10376)
It provides two type of output waveform — sine, square with a continuous frequency range of 10 Hz to 100 kHz with four decade and selectable through the combination of set frequency control knob range selected by a rotary switch and maximum output amplitude of 5 V (peak-to-peak). A set frequency. The front panel incorporates three safety sockets — two for output signal and one for ground. The instrument has been designed with simplicity in mind to offer easy operable to the students.
SPECIFICATION :
1) Frequency Ranges: 10-110 Hz, .1-1.1 KHz, 1-11.1 Hz, 10-110 KHz
2) Max. Amplitude 5 V v.p.p
3) Wave forms Sine, square selectable through a push switch
4) Internal speaker selectable through a push switch
5) Fuse rating 500 mA / 250 V AC
6) Operating Voltage: 110 V/220 V 110%, 50/60 Hz AC Main
7), Operating Condition: 0-40°C,. 90.9% RH
8) Signal modes: Sine, triangular and square
