ESAW Coils For Dissectible Transformer Transparent Casing (EEC-9205)

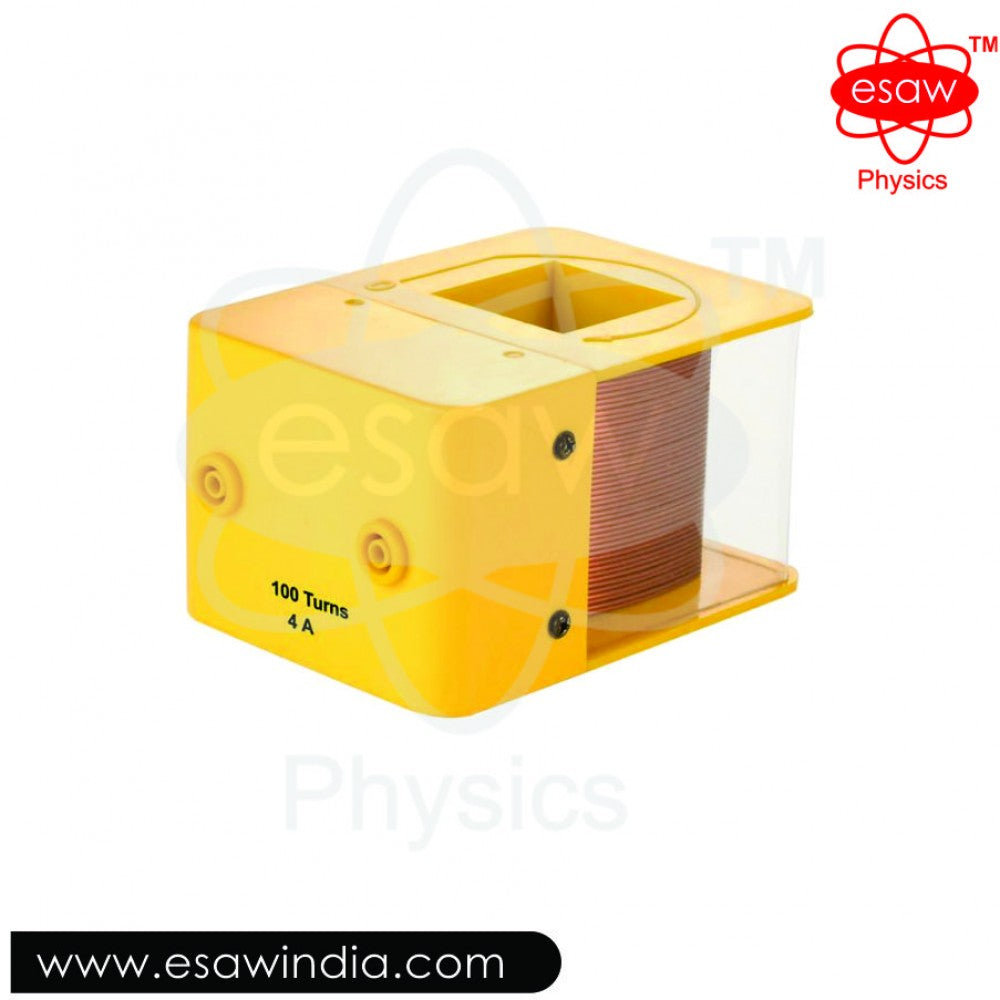

Coils for use with the Dissectible Transformer, Cat No.1090160. These coils are of similar specifications as the ones supplied in Cat No. 1090160. All coils wound from enameled copper wire on insulated rectangular plastic bobbin enclosed on three sides by a transparent cover. Front of the bobbin is totally covered by a molded plastic box on which 4mm shielded safety sockets are present for connecting coil in the circuit. With number of turns of coil clearly printed on front and direction of winding indicated on top. Rectangular bobbins have hole at their center matching the cross section of U-core arms to sit on them with negligible air gap for minimizing induction losses.

EEC-9205 Coil of 6000 turns, with one intermediate output corresponding to 2000 turns

EEC-9205 Coil of 600 turns. Mainly to create the transformer primary. Provided with mains power cable

EEC-9205 Coil of 1200 turns, with Intermediate outputs corresponding to 400 and 800 turns

EEC-9205 Coil of 72 turns maximum current 12A, with intermediary outputs corresponding to 6, 30, 54 and 66 turns

EEC-9205  Coil for Transformer, 100 turns

EEC-9205  Coil for Transformer, 300 turns

EEC-9205  Coil for Transformer, 3600 turns

EEC-9205  Coil for Transformer, 12000 turns
