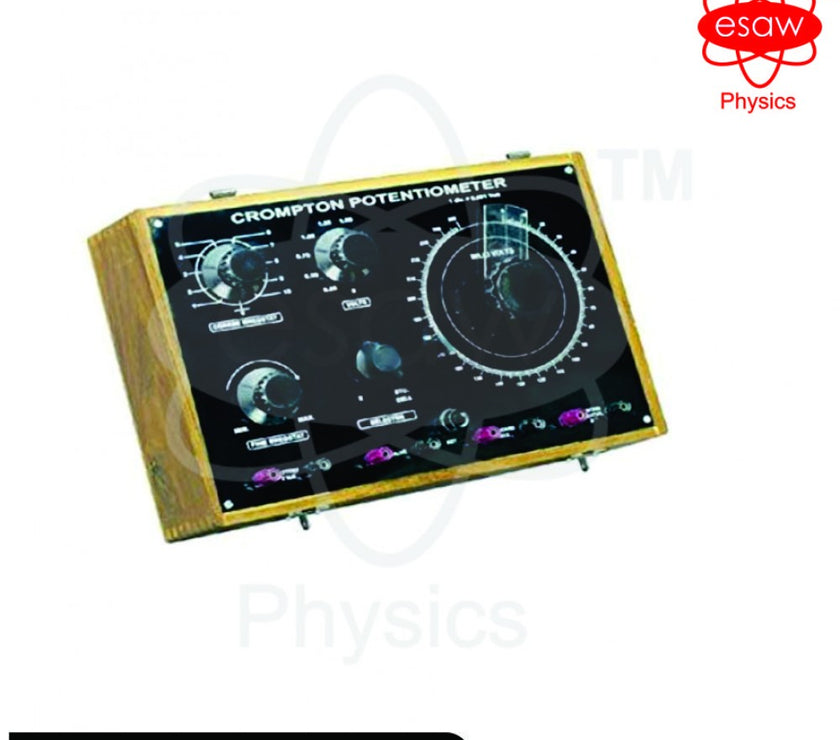

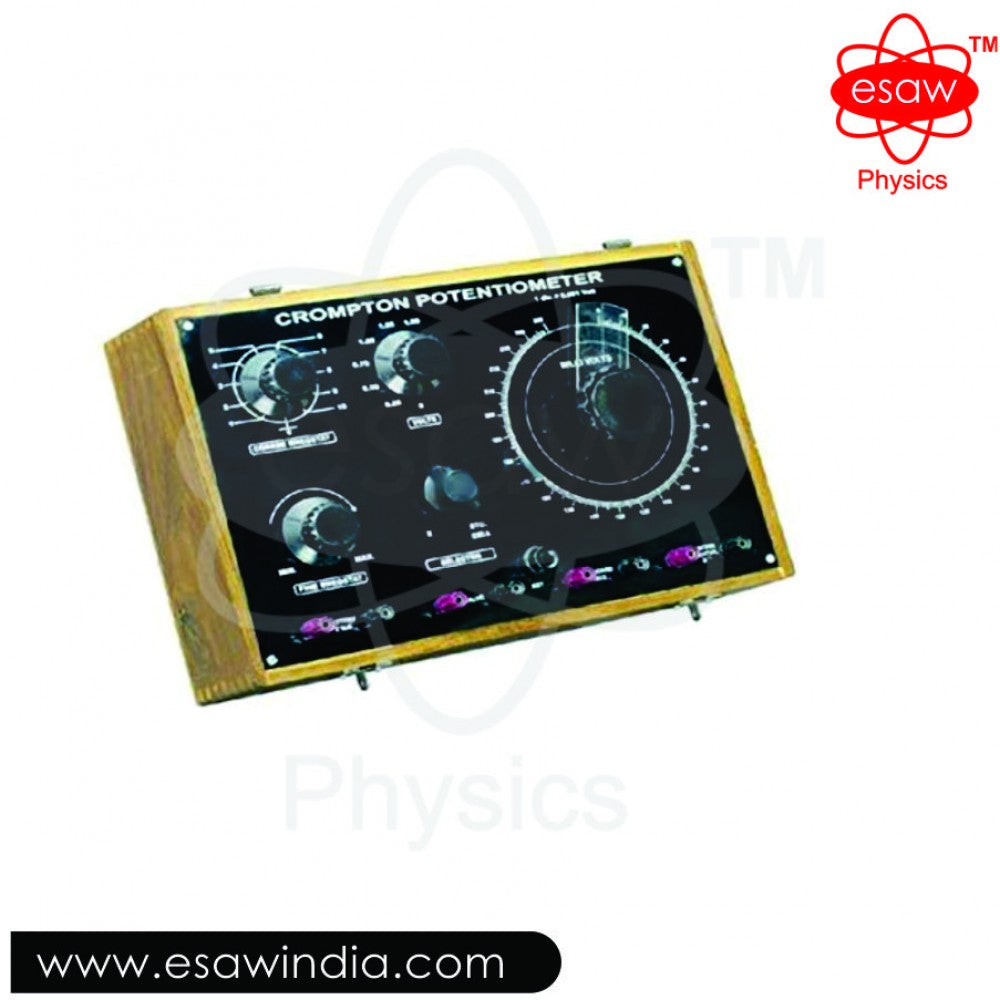

ESAW Crompton Potentiometer (EEC-9934)

Voltage Dials :

1st Dial 6x250mV                               = 1500mV

2nd Dial 500 divisions(slide wire)    = 250mV

Total                                                     = 1750mvV

• Each Slide wire division is equal to 1/2 millivolt or 500 micro volts.
• Coarse and fine rheostats are provided. Terminals for 2 volts battery, Galvanometer, standard cell are provided on the panel.
• Current is of the order of 125mA.

This potentiometer is supplied with a self standardization circuit built in, which renders standardization dependent on setting of voltage dials.
