ESAW Demonstration Dynamo, AC/DC (EEC-9556)

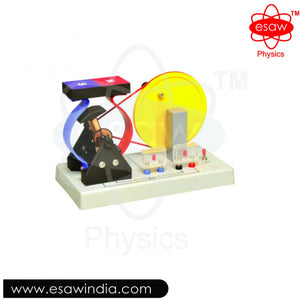

Shows the conversion of mechanical energy into electrical energy and the principle of working of simple AC and DC dynamos. Complete assembly mounted on a base and capable of generating both AC and DC simultaneously as indicated by the glowing of bulb present on the base. A two-pole armature wound from the enamelled copper wire on the insulated bobbin is mounted in shaft supported on moulded plastic legs on either side and is positioned between two curved iron strips. The shaft carries split ring commutator on one side for DC output and slip ring commutator on the other side for AC output, which is available through 4mm sockets mounted on respective sides and Selectable through a sliding switch. Magnetic field provided by a permanent magnet on top of curved strips. The complete arrangement is driven by a hand-cranked bigger driving wheel with a handle through an endless rubber belt.
