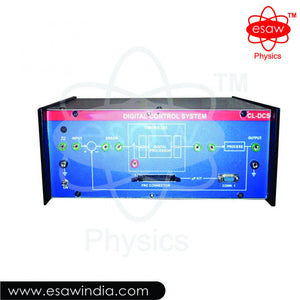

ESAW Digital Control System (EEC-11584)

Specifications

• Second orders imulated process(analog Process)

• Built-in D/A and A/D circuits(8-bit)

• 8085 based P-kit as digital controller with user software in

8K EPROM

• 16- bit arithmetic for algorithmic calculations

• Square wave test input(internal)

• 16 built-in levels of P, I and gains each.

• Complete flexibility for the user to develop own software

• IC regulated internal built-in power supplies

• Detailed literature and patch cords included

• Essential accessory - a CRO
