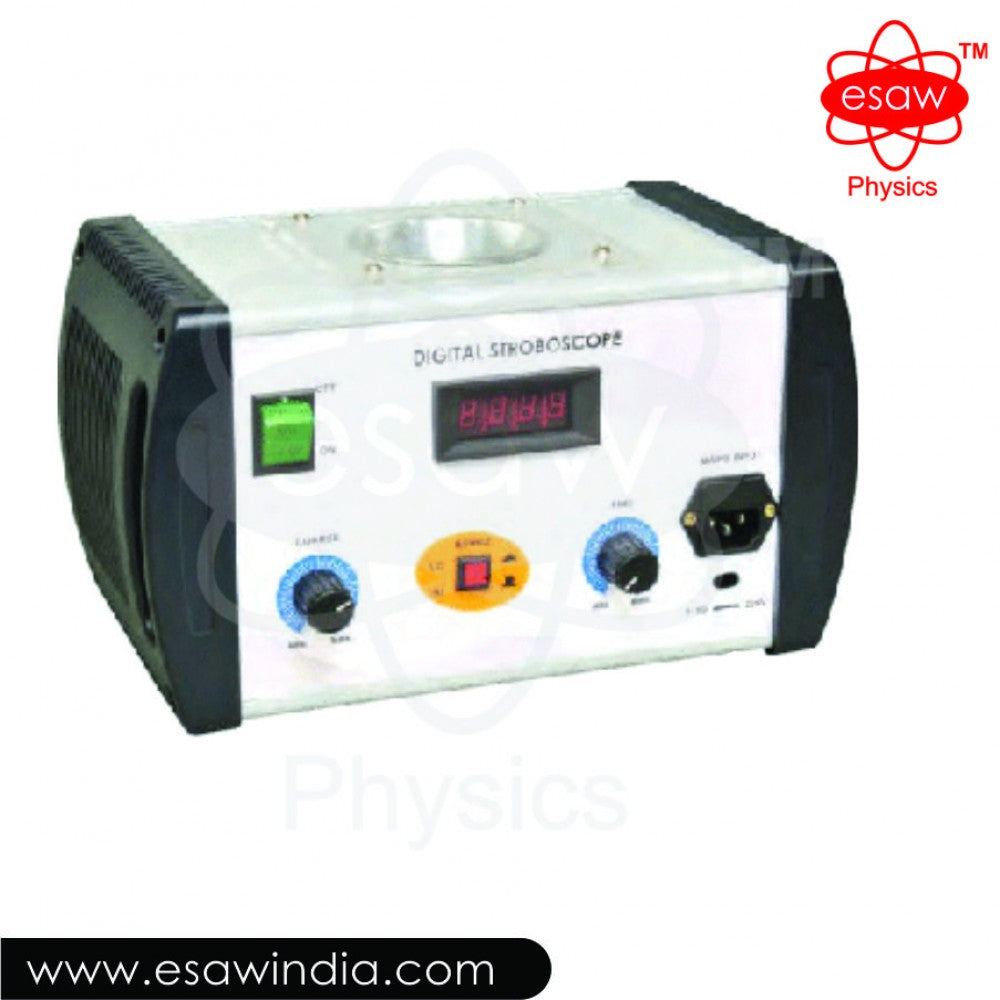

SW-2742 - ESAW Digital Stroboscope
A fully microcontroller based digital stroboscope is widely used to visualize the vibrating strings, moving gear system, speed of the motor, speed of the fan, waves in a ripple tank, etc. A rotating or moving item seems to be stationary when the frequency of the stroboscope matches with the rotating rates of items. There is 4 digit display for visualizing the frequency.
1) Tube Used Xenon Lamp
2) Operating Voltage 110V/220V ±10% 50/60Hz selectable via. slider switch
3) Samp0ling rate 1 Sec
4) Range Selector High / Low range
Low range of approx. 100.0 – 1200RPM
High range approx. 1000 – 10000 RPM
5) Operating Condition 0-55ºC, 95% Rh
6) Power Consumption Less than 50 Wa
