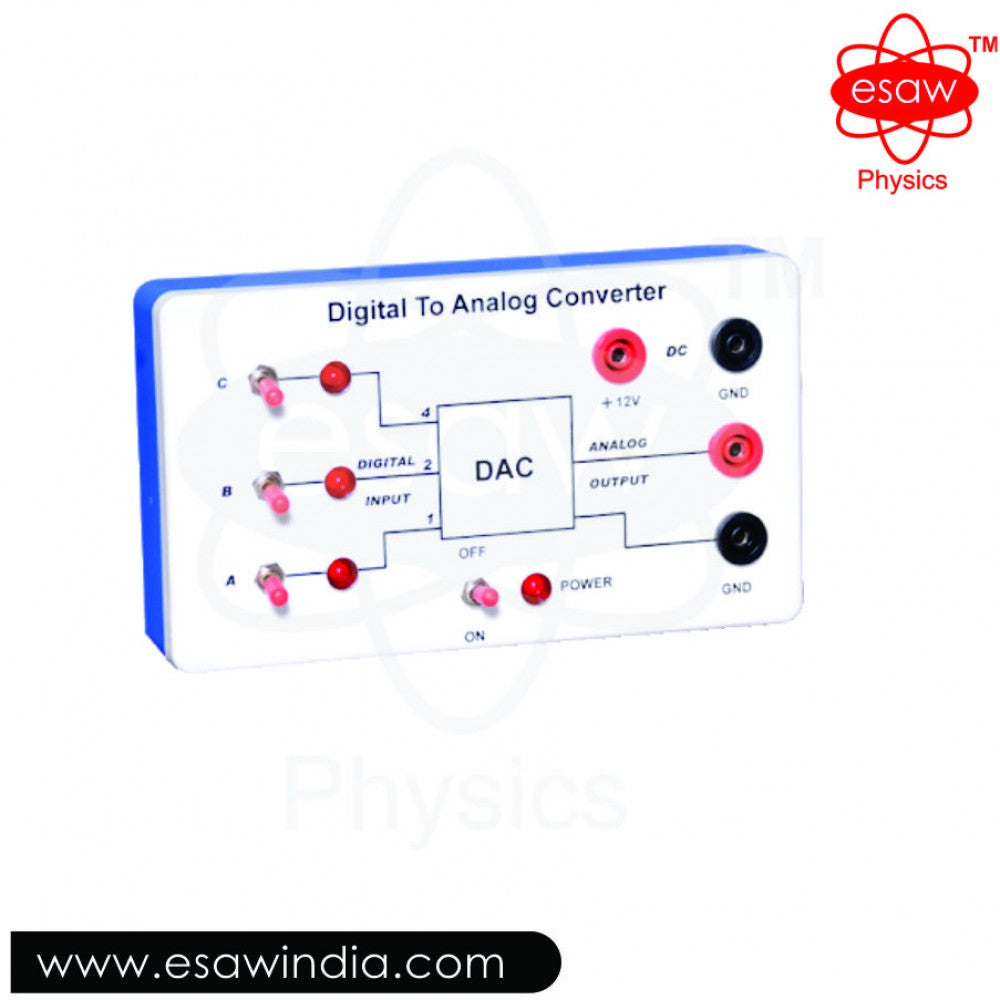

The ESAW Digital to Analogue Convertor (EEC-10304) is a precision-built educational lab kit that demonstrates the reverse process of analogue-to-digital conversion. Compact and durable, the circuit is securely enclosed in a plastic molded case (142 × 80 × 40 mm) for classroom and lab use.
This DAC system accepts a 3-bit binary coded digital input and converts it into a smooth 0–7V analogue output. Two control knobs (gain and zero adjustment) allow users to fine-tune the analogue signal to exactly 1V per step increment, making it a highly effective tool for teaching digital electronics concepts.
✅ Realistic Use Cases:
-
Students: Hands-on training in signal conversion and electronics fundamentals.
-
Schools & Colleges: Essential for physics and electronics laboratory experiments.
-
Engineering & Technical Institutes: Ideal for digital system design training.
-
Medical/Nursing Colleges: Useful in biomedical instrumentation studies.
-
Industrial Labs & Research Centres: Practical tool for R&D teams studying digital-analogue interface systems.
Designed in India, this affordable digital to analogue convertor for labs is available for bulk purchase at competitive prices, making it ideal for schools, universities, distributors, and institutional procurement worldwide. ESAW products are trusted across India, Africa, Asia, Europe, and the USA for their export-quality educational lab equipment.
Technical Details:
-
Model / Catalog No.: EEC-10304
-
Case Size: 142 × 80 × 40 mm (Approx.)
-
Input: 3-Bit Binary Digital Input
-
Output: 0–7V Analogue Output
-
Controls: Gain & Zero Adjustment
-
Application: Digital to Analogue Conversion Demonstration
-
Country of Origin: Made in India
