ESAW Electricity Kit (EEC-9979)

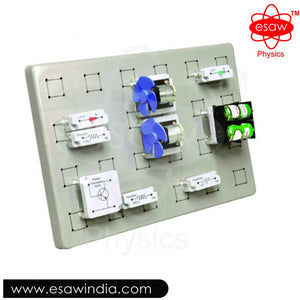

Electricity kit is made of bread board with discrete components having 4mm plugs. In the kit, the components are stored in a heavy duty carry-case. This kit consists of the necessary parts needed to work through a complete introduction to basic electricity. The components are easy to set up and enable the user to perform a wide variety of experiments. It will provide the perfect introduction to the basic fundamentals of current components with 4mm plugs for assembling your circuits and all the resistors, electricity. It is equipped with excellent tools, which can be utilized for the more advanced studies. This kit helps the students to observe and understand how electrical instruments such as motor, relay components work and their characteristic behavior in static and dynamic circuits.

The components provided in the kit are:

Cell holder with batteries : 2

Bridging plugs : 4

Resistor 1000 : 2

Multimeter : 2

Resistor 2200 : 1

Potentiometer 1000/5W : 1

Lamp Holder : 1

Toggle switch : 1

Capacitor 1000uF/16V : 2

Push to ON switch : 1

Inductor coil : 1

Compass : 1

Clips : 5

Relay 12V DC : 1

Motor small : 2

Plastic fan : 2

C core with clips : 1set

Coil 400 turns :1

Coil 1600 turns : 1

Reversing switch : 2

Buzzer : 1

A variety of experiments can be performed using the Kit like :

(I) Verification of Ohm's law

(ii) Verification of Kirchhoff’

(iii) Potential difference or electro-motive force measurement

(iv) Current measurement

(v) Voltage measurement

(vi) Charging and discharging of a capacitor

(vii) Combination of capacitors in series and parallel

(viii) Measurement of electrical resistance

(ix) Addition of resistances in series and in parallel

(x) Use of Buzzer in an electrical circuit

(xi) Use of relay in an electrical circuit

(xii) Understanding of transformer and its working

(xiii) Understanding of dynamo and its working

(xiv) Transformation of electrical energy into mechanical energy

(xv) Working of electromagnet

(xvi) Study of electric bulb

(xvii) Direction of magnetic field

Additional use of cathode ray oscilloscope makes this kit a versatile.
