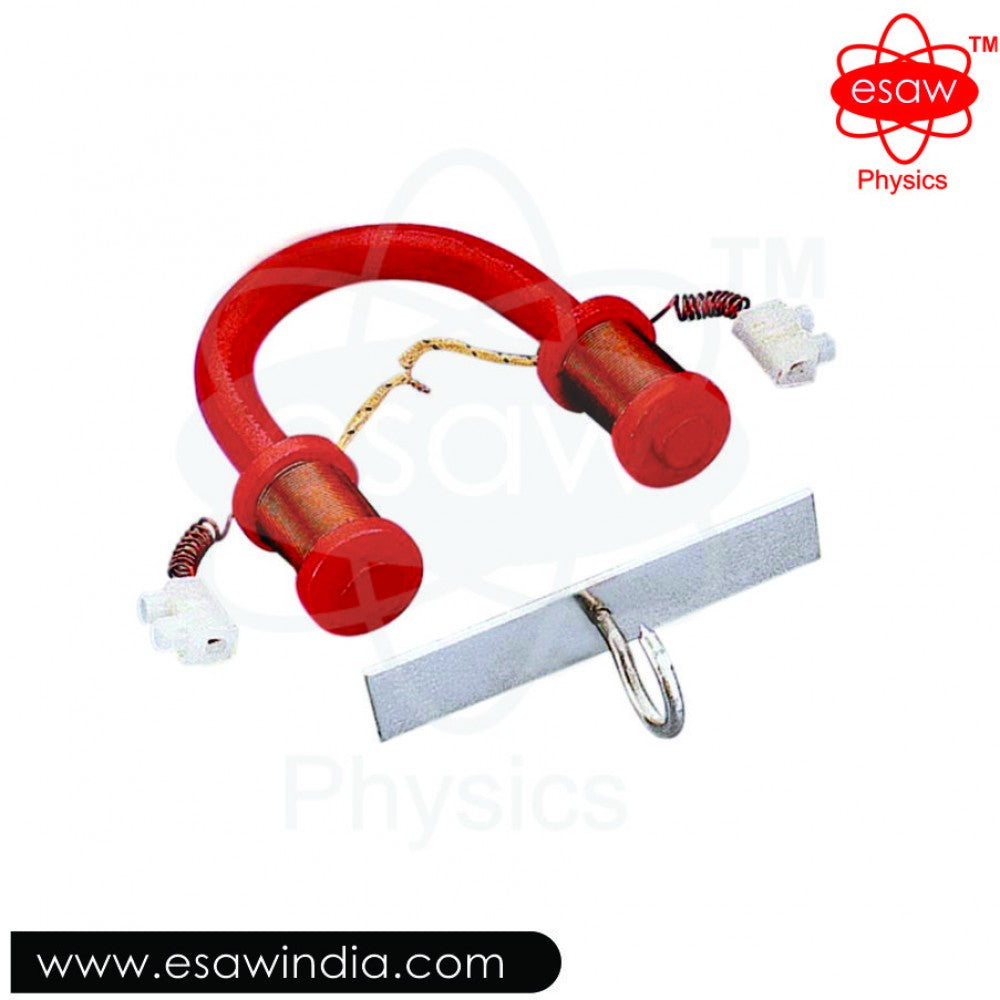

ESAW Electromagnet (EEC-10556)

Specifications

At 10 mm air-gap 75 mm diameter flat each with a resistance of about  0-90 V DC, 3 A, if coils are connected in series. 0-45 V DC, 6 A, if coils are Connected in parallel. This type of Electromagnet is also available with tapered Pole Piece to 25 mm diameter to increase the field intensity. Constant Power Supply ions Smoothly adjustable from 0-3 A per coil. 6 A

0.1% for load variation from 0 to maximum.

0.1% for + 10% mains variation 3% digit, 7 segment LED Display

Specially suitable for Electromagnet EMU-75
