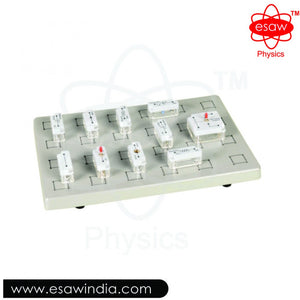

ESAW Electronics Kit (EEC-9988)

Electronics kit is a uniquely designed kit to get you started learning about electronics. In this kit, the components are stored in a heavy duty carry-case. The components are easy to set up and enable the user to perform a wide variety of experiments. The kit consists of a bread board with discrete capacitors, diodes, LEDs, transistors, SCR, TRIAC and other components needed for the experiments. It will provide the perfect introduction to the basic fundamentals of electronics. It makes easy for students to observe and understand that how semiconductor components work and their characteristics behavior in static and dynamic circuits. This is a great learning kit to get you started designing, testing and building your own circuits.

The components provided in the kit are:

Cell holder with batteries : 2

Lamp Holder : 1

Bridging plugs : 7

Si diode : 4

Toggle switch : 1

Multimeter : 2

Resistor 1000 : 1

Resistor 2200 : 1

NPN signal transistor : 1

NPN power transistor : 1 E

PNP signal transistor : 1

PNP power transistor : 1

Lamp 12V : 2

Infra red LED : 1

Photo transistor : 1

LED Green : 1 R

LED Red  : 1

LDR 1 " :|

Torch 1 TRIAC : 1 PS

Capacitor : 10,

F 2 Speaker : 1

Capacitor 1pF : 2

SCR (Silicon Controlled Rectifier) : 1 5

A variety of electronic experiments can be performed using Electronics Kit :

1) Diode characteristics

ii) Diode as a rectifier

iii) Transistor characteristics

iv) Transistor as a switch

v) Transistor as an amplifier

vi) UJT characteristics

vii) Audio-amplifier

viii) SCR characteristics

ix) Transformer characteristics

x) Wiring up of a LED

xi) Analysis of Zener shunt regulation

xii) Zener diode characteristics

xiii) Potentiometer experiments

Additional use of cathode ray oscilloscope makes this kit a versatile tool for the electronics experiments.
