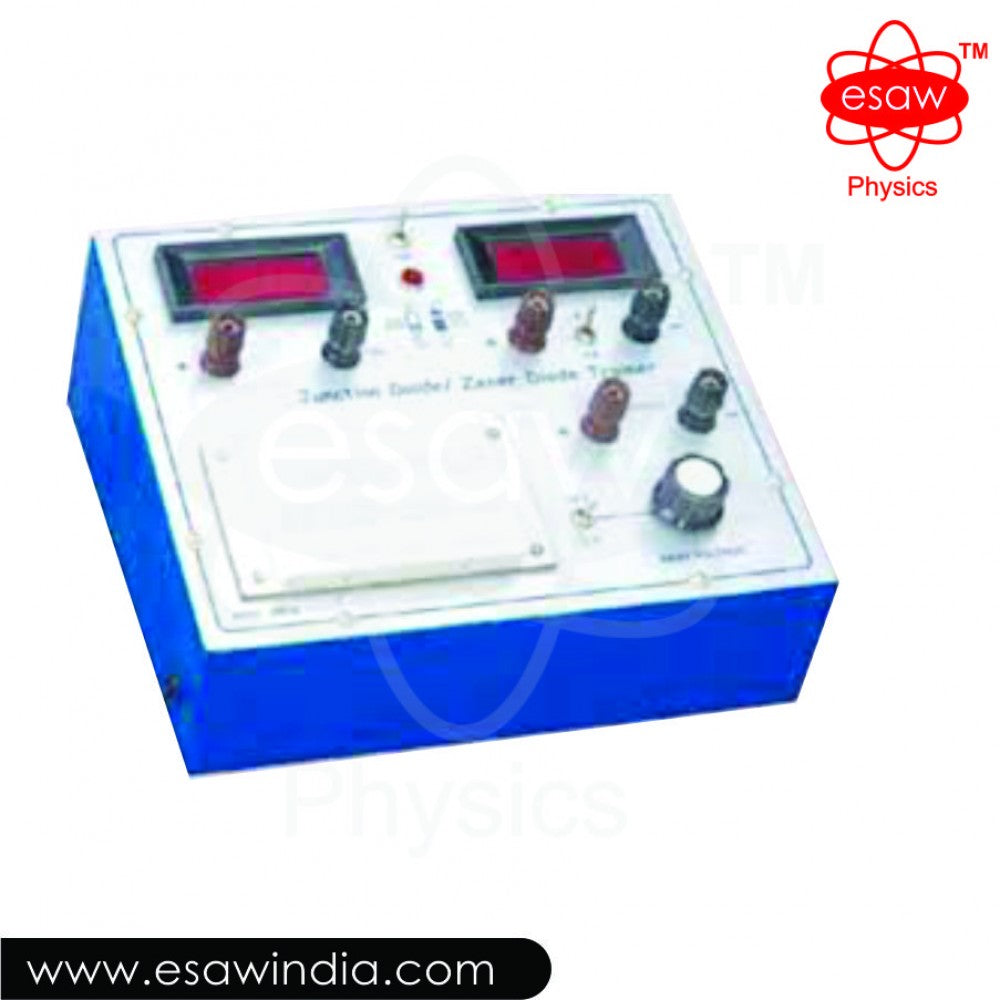

ESAW Junction Diode & Zener Diode Trainer Digital Model Combined (EEC-11340)

Complete Kit (Digital) in all respects with the following built-incomponents:-

• Built-in two Digital Panel Meters to read Voltmeter & Microammeter/Milliammeter readings (20V & 2000mA/200mA)

• Solderless Breadboard of Size 3½”x2½” is also mounted on substantial Hylem backing plate.

• Contentsof Kit:

1 ZenerDiode 1Z5V6

1PNJunctionDiode in 4007

1 Carbon Resistance of 270 ohm, 1Watt.

• Spare plastic coated single Tinned copper wires (SWG No.22) are providedfor easy connection.

• Built-in variable stabilized power supply 3V and 15V (Selectable)
