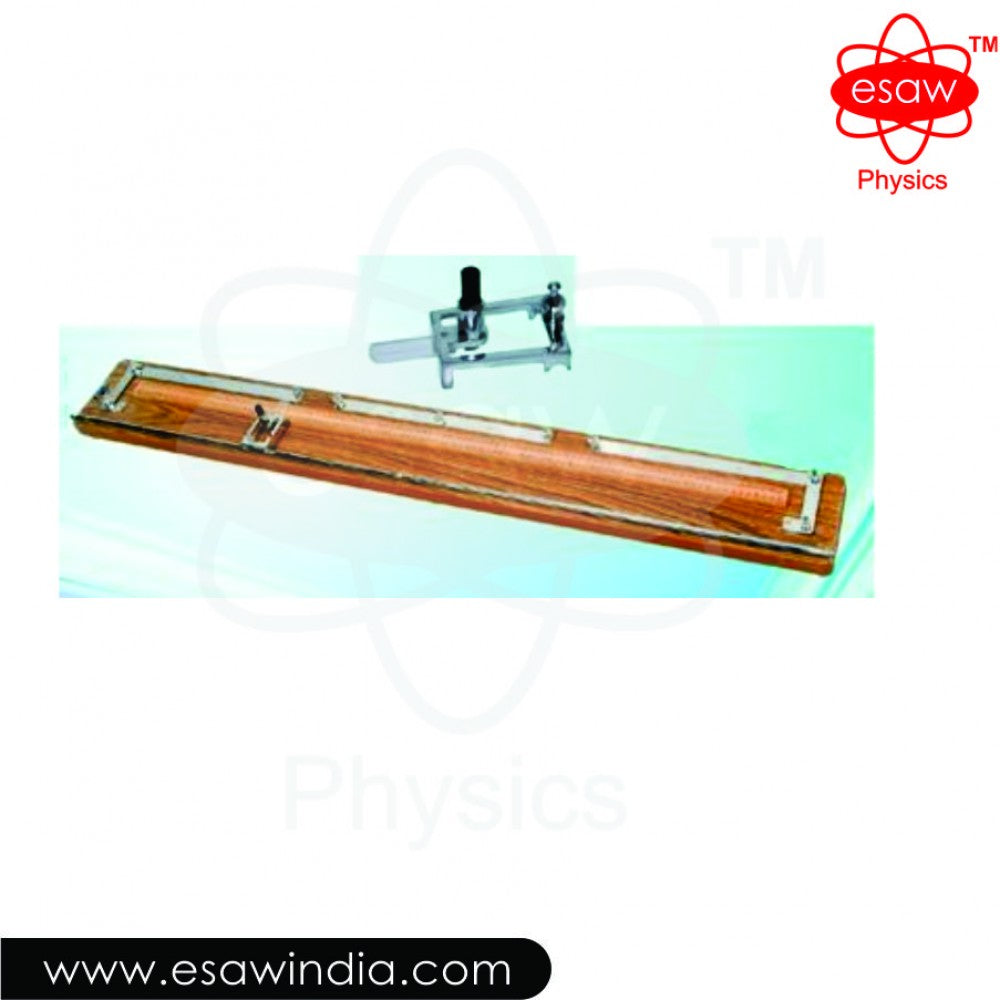

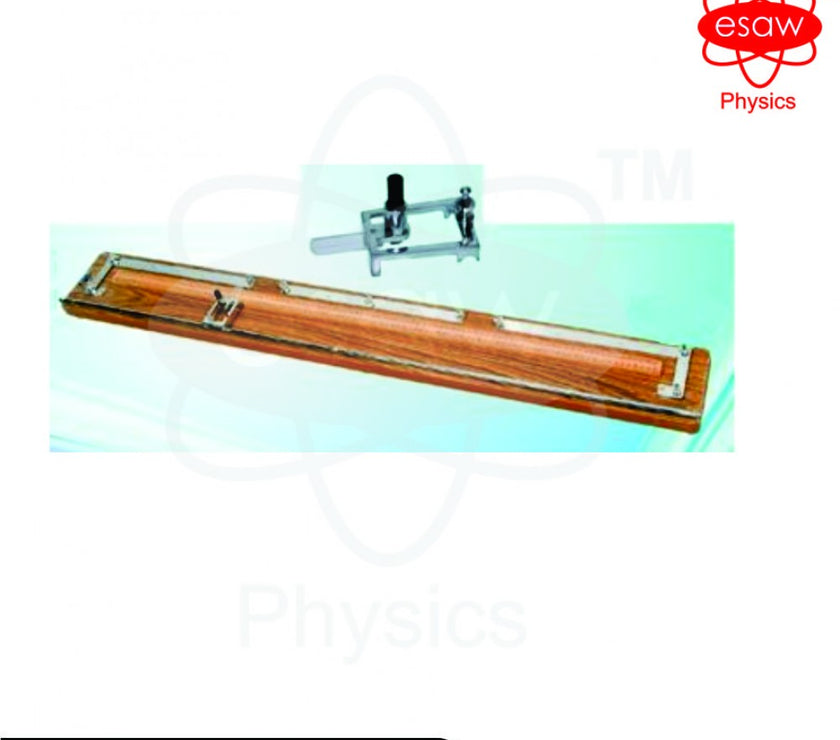

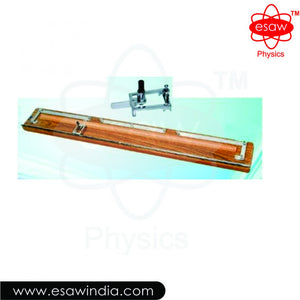

The ESAW Meter Bridge or Wheatstone Bridge with Spring Type Jockey (EEC-9961) is a high-precision electrical apparatus designed for accurate resistance measurement and comparative experiments in physics and electrical labs. Unlike standard models, this bridge replaces the pencil jockey with a superior-quality brass spring sliding jockey mounted on a durable metal rod, ensuring smooth operation and enhanced accuracy.
The brass strips are mounted on a laminated wooden board (45” × 5” × ¾”), offering durability and stability during classroom demonstrations or advanced laboratory testing. ESAW’s design makes this bridge a preferred choice for both educational training and industrial research applications.
✅ Realistic Use Cases:
-
Students: Hands-on practice in understanding Wheatstone bridge principles.
-
Schools & Colleges: Core experiment apparatus for physics classrooms.
-
Science & Engineering Labs: Used for precise measurement of unknown resistances.
-
Medical & Nursing Colleges: Supports electronics and instrumentation coursework.
-
Industrial Labs & R&D Centres: Reliable for calibration and resistance-testing setups.
With its export-quality build and affordable pricing, ESAW offers bulk availability for institutions in India and across global markets (Africa, Europe, Asia, USA). It is the best Wheatstone bridge for students and researchers seeking accuracy and durability.
Technical Specifications:
-
Board Size: 45” × 5” × ¾”
-
Jockey Type: Brass Spring Sliding Jockey
-
Construction: Brass strips fitted on laminated board
-
Catalog No.: EEC-9961
-
Country of Origin: Made in India
