ESAW Motor Accessory Set For Dissectible Transformer (EEC-9556)

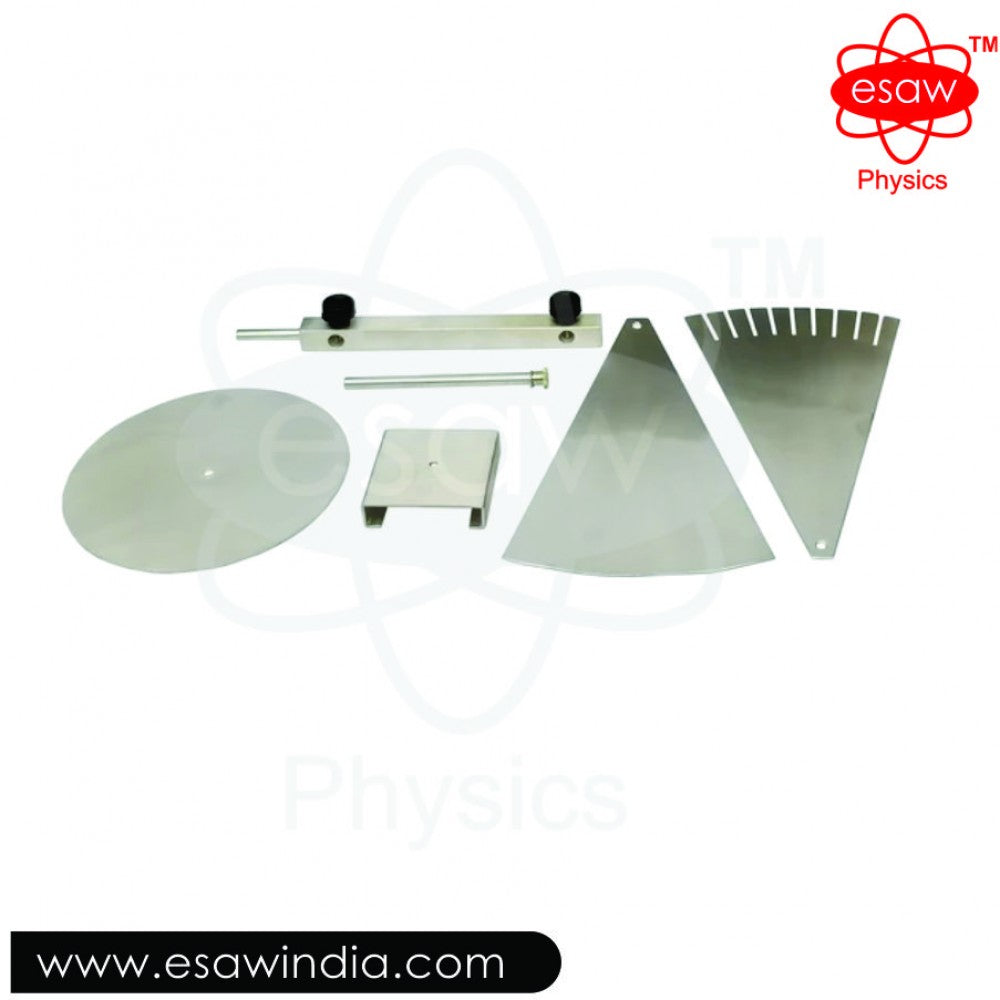

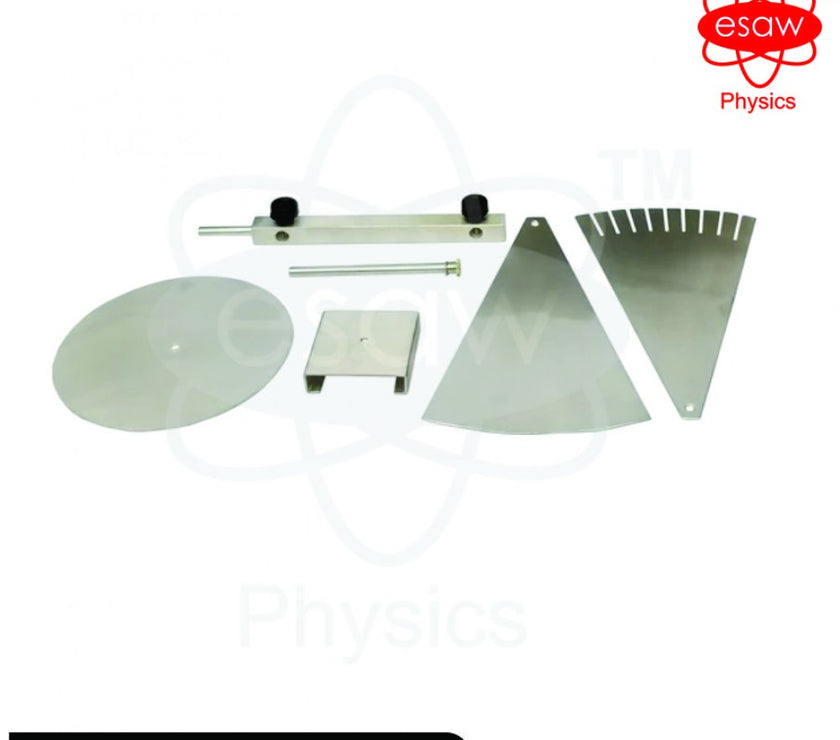

Demonstrates the effects of eddy currents and the principle of shaded pole motor when used with the Dissectible Transformer. The set consists of a pair of soft iron pole pieces, which are located on top of the arms of U-core; a vertical support rod that fits on top of the pole pieces and has two transverse holes with tightening screws; an aluminium circular disc; one plain, quadrant shaped aluminium plate and one slotted quadrant shaped aluminium plate for eddy current demonstration; a pole shading piece; and a circular shaft that fits into the holes of vertical support rod and locates the quadrants and disc at its other end permitting their free rotation along its axis.
