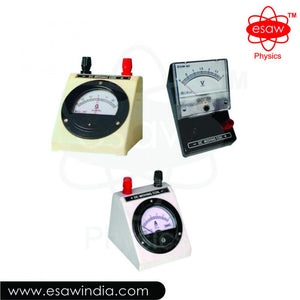

ESAW Moving Coil Meters (ME-7991)
For D. C. use only, with permanent magnet, spring controlled movement, eweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic / acrylic stand with color coded terminals.
These meters are available in following sizes:
MO-65
Scale Length approx. 50 mm, dial diam. 65 mm mounted in desk stand with two color coded terminals. Overall size 90 x 110 x 90 mm approx. Accuracy : +2.5% F S D
E D M- 80
Scale Length approx. 60 mm with anti-parallax mirror scale, dial size 72 x 72 mm with color coded terminals. Overall size 90 x 110 x 125 mm approx. Accuracy : +2% F S D
E D M- 100
Scale Length approx. 85 mm with anti-parallax mirror scale, dial size 80 x 100 mm with color coded terminals. Overall size 100 x 100 x 140 mm approx. The ranges covered are Voltmeters: 0 - 1 Volt to 0 - 600 Volt. Millivolt meters : 0 - 1 mV to 0 - 1000 mV Ammeters: 0 - 1 Amp to 0 - 10 Amp, with internal shunt. Milli ammeters : 0 - 10 mA to 0 - 1000 mA Micro ammeter : 0 - 100 uA to 0 - 500 uA
