ESAW Owen’s Bridge (EEC-15597)

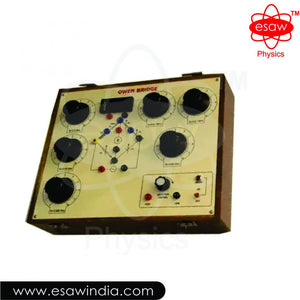

Owen’s Bridge is used to measure the Unknown value of Inductance. The instrument following inbuilt parts fitted in a TeakWood Case.

AC Source:

The Bridge consists of a sine wave signal of 1KHZ. The amplitude of the AC switch indicating lamp is provided on the bakelite board. Two sockets are provided for the output of AC signals.

Detector:

For detecting small AC signals in the output, Null Detectorisin-built with digital display.

Circuit Diagram:

The circuit layout on the board is quite spread out to facilitate convenient working & clear understanding. 4mmsocket are provided for making connections.
