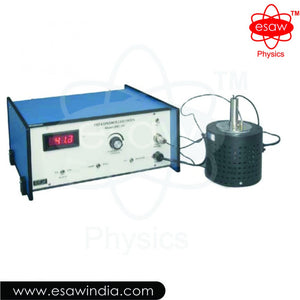

ESAW PID Controlled Oven (EEC-10574)
This is high quality temperature controlled oven suitable for testing of electronic components & study of temperature transducers etc. The oven has been designed for fast heating and cooling rated which enhances the effectiveness of the controller. While the basic design of the controller is around the PID configuration for’ obvious advantages, wastage of power is avoided by using a Pulse Width Modulated (PMW) switch. This combination has the advantages of both on-off controller and linear PID controller. The result is a good stable and accurate temperature control.
Specification of the Oven :
Temperature Range : Ambient to200 C
Stability ; Short Range : + 0:2 C. Long Range : +6.5C
Measurement Accuracy : +0.5¢ (typical)
Oven Dimensions : Heating Chamber Inner Diameter : 25mm, Height: 100mm
Sensor: RTD {A Class)
Display : 34 digit, 7 segment LED (12.5mm)
