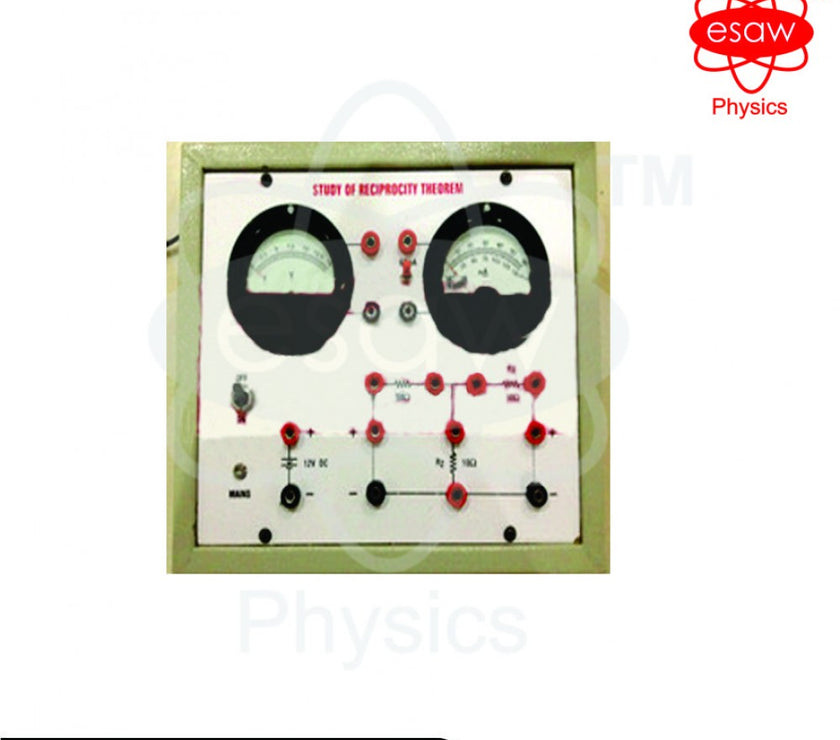

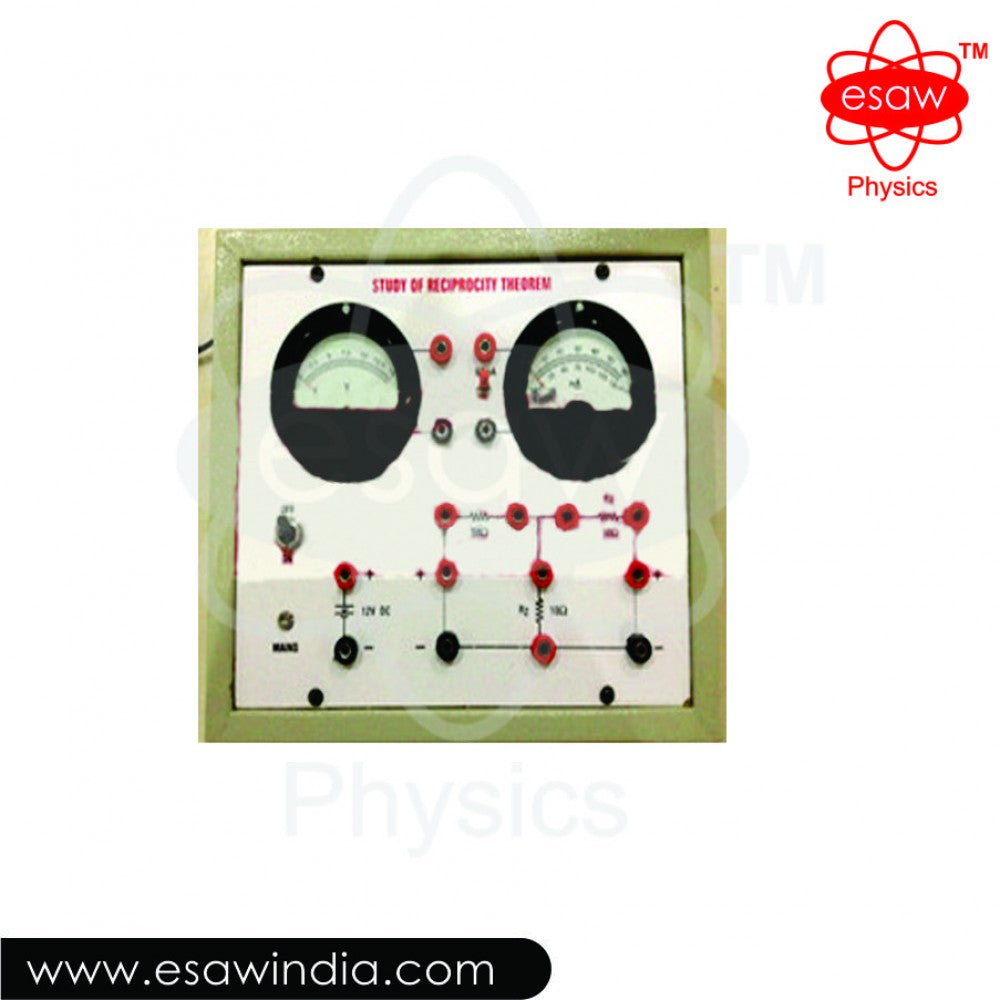

The ESAW Reciprocity Theorem Kit (T-11467) is a high-quality training apparatus designed to help students and researchers practically verify Reciprocity Theorem in electrical networks. It is widely used in physics, electronics, and engineering labs across India and abroad for hands-on learning of network theorems and circuit behavior.
This instrument features a variable DC regulated power supply (1.2V to 10V) and is equipped with three precision moving coil meters (10V, 10mA, and 20mA) for accurate measurement of voltage and current. The circuit diagram is printed on the front panel, and all connections for supplies, meters, and resistances are conveniently provided through 4mm sockets/terminals. The kit comes complete with connecting leads, making it classroom and lab ready.
Built for durability and repeated use, the ESAW Reciprocity Theorem Kit is ideal for students, schools, universities, engineering colleges, and industrial research centers. It offers an affordable yet export-quality solution for institutions worldwide, including buyers in Africa, Europe, USA, Asia, and the Middle East.
Specifications:
| Feature |
Details |
| Power Supply |
Variable DC Regulated, 1.2V – 10V |
| Meters |
3 Moving Coil Meters (10V, 10mA, 20mA) |
| Connections |
4mm Sockets/Terminals |
| Circuit Diagram |
Printed on Front Panel |
| Accessories |
Supplied with Leads |
| Catalog No. |
T-11467 |
| Country of Origin |
Made in India |
Use Case Scenarios:
-
Students: Learn practical applications of the Reciprocity Theorem.
-
Schools & Colleges: Essential for teaching circuit analysis in physics and electronics.
-
Science & Chemistry Labs: Supports demonstration of electrical principles.
-
Engineering/Nursing/Medical Colleges: Enhances understanding of electronic fundamentals.
-
Industrial Labs & R&D Centers: Useful for advanced circuit testing and training programs.
