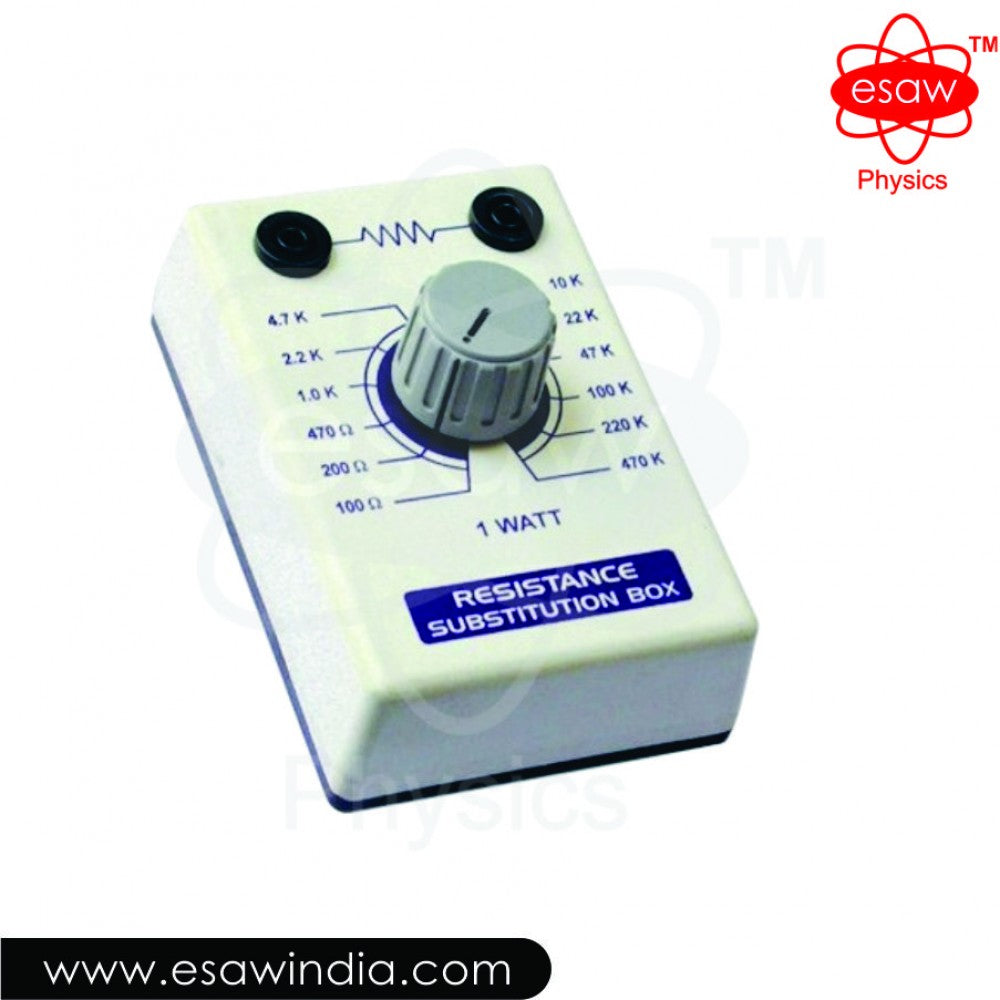

ESAW Resistance Substitution Box (EEC-10403)

Comprising 12 radio type resistances using standard preferred values covering the range 100 ohms to 470 kilo-ohms. In the steps ratio of 1:2 approx. Selection by means of rotary switch & external connection is via 4mmsocket.

Resistance Tolerance

(2) 1000hms +10%

(E99) 2200hms +10%

ia 470 ohms +10%

(EQ  ikilo-ohms +10%

(2) 2.2 Kilo-ohms +10%

(EI) 4.7Kilo-ohms +10%

[E9)  10kilo-ohms +10%

(AR 22kilo-ohms +10%

{I 47Kilo-ohms +10%

(100 Kilo-ohms +10%

(9) 220kilo-ohms +10%

(470Kilo-ohms = #10%
