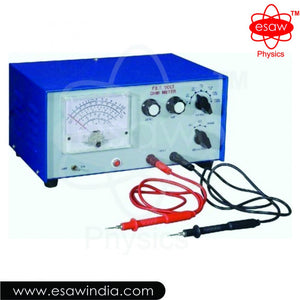

10980 - ESAW FET Volt-Ohm Meter (VOM-60)

FET VOLT-OHM is an electronic voltmeter for quick precise measurement of D.C. and A.C. voltage as well as resistance values. Large measuring ranges with high Input impedance make the instrument ideal for a wide laboratory, workshop and testing branch. Basic Operation : Voltage measurements are based on the bridge circuit via an attentuator and unbalance this bridge circuit, which indicates in built in calibrated meter. A. C. Voltage.

Specifications Meter For better accuracy Meter used with basic movement of 100pA.

AS ELECTRONIC D.C. VOLTMETER Ranges                Seven                      0-1.5,5, 15, 50, 150, 500 and                      1500 volts FSD Accuracy              +-3% Input resistance      11 Megohms

AS ELECTRONIC A.C. VOLTMETER Ranges                Seven                       0-1.5,5, 15, 50, 150, 500 and

                     1500 volts FSD

Accuracy              +-5% Input resistance      1.5 Megohms

AS ELECTRONIC OHM METER Ranges               Seven                      0-1K, 10K, 100K ohms and

                                            0-1, 10, 100, 1000Megohms FSD

Accuracy                            +-3%
