10917 - ESAW Linear IC Trainer

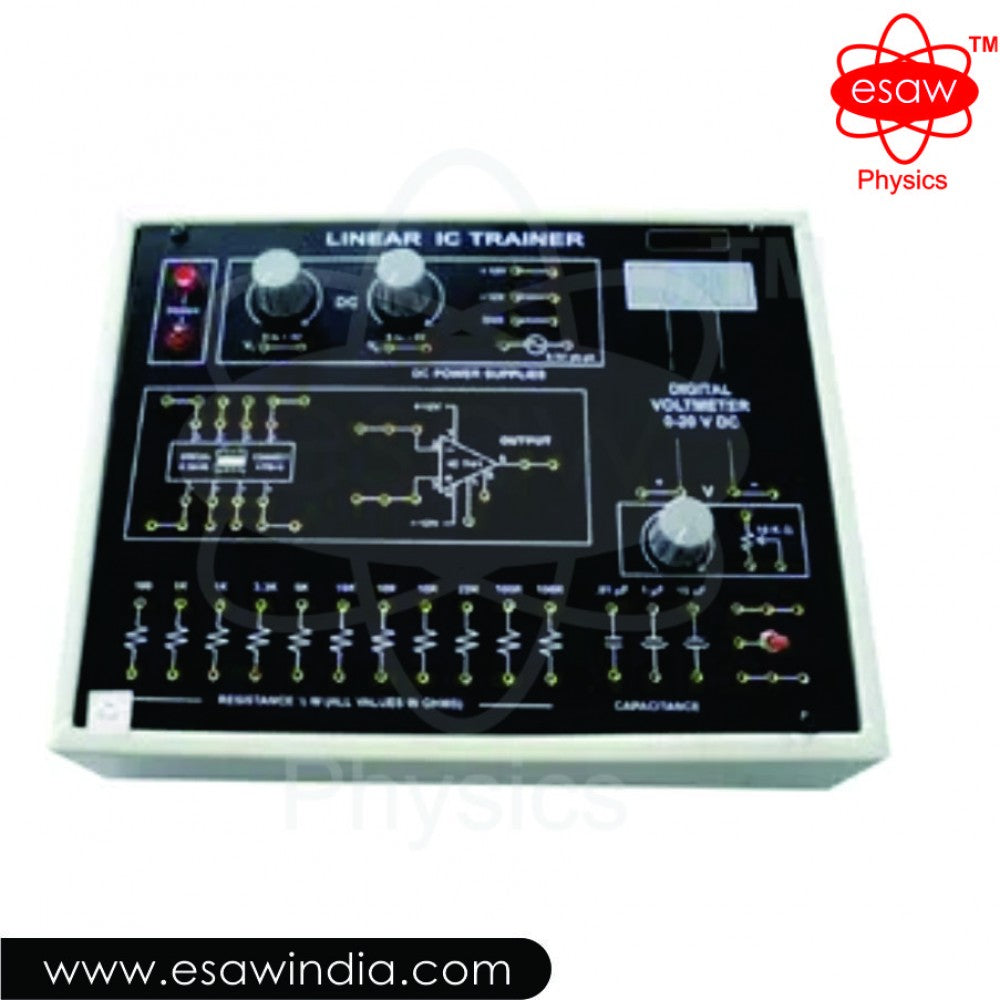

Lucidly illustrated User's manual unravels analog electronics concepts through brief theoretical reviews followed by experiments, self test questions and exercises. Modularly designed Front Panel contains all commonly used componenis for doing atleast 10 experiments. lt consists of specially designed brass sockets of 2mm inner diameter which are press fit by special techniques on bakelite panel. Specially designed patch cords(with spring action) of pin diameter 2mm are provided so that the students can make interconnections themselves and do various experiments. Board Consist of following : ° DC Regulated Power Supplies Fix + 12V/ 250mA,Variable 0 to+ 5V/ 250mA. * Sine Wave Oscillator of 1 KHz at0.5Vp-p is built-in. * Functional diagram of IC 741 with input points is pins is provided for putting any other IC of your choice

® Digital Voltmeter 0-20VDC - 1 No. 3%Digit, LCD Display, Mains operated.

*Assorted Values of Resistances - 11No. 100, 1K, 3.3K, 5K, 10K, 22K&100K ohms etc. © Assorted Values of Capacitances - 3No.   0.1, 1&10uF © Potentiometer 10 K ohm, Linear - 1No. © 2mminterconnectionLeads - 10No. © Toggle switch with selection of Input or Output V is provided. © Comprehensive USER's Manual for doing at least 10 experiments on OP-AMP 741 is provided.
