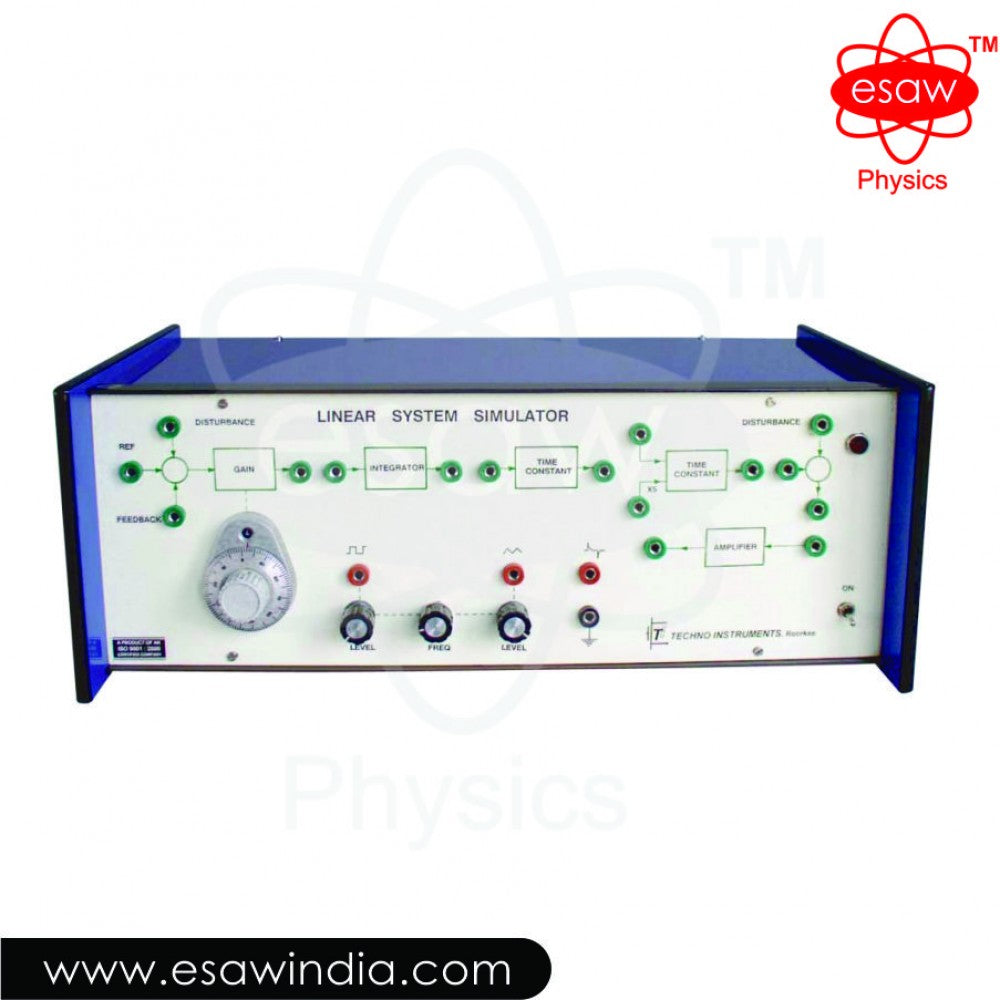

ESAW EEC-10613 Linear System Simulator

Specifications

• Simulated first, second and third-order system of type-0 and type-1
• Calibrated variable gain amplifier(Resolution 1:1000)
• Built-in signal sources: Square wave and Triangular

            Frequency: 45-90Hz

            Amplitude: 0-2.5Vapproximately

• Trigger output for perfectly steady display on CRO
• Uncommitted amplifier for phase adjustment
• Provision for disturbance inputs
• Complete in all respect, except a measuring CRO
