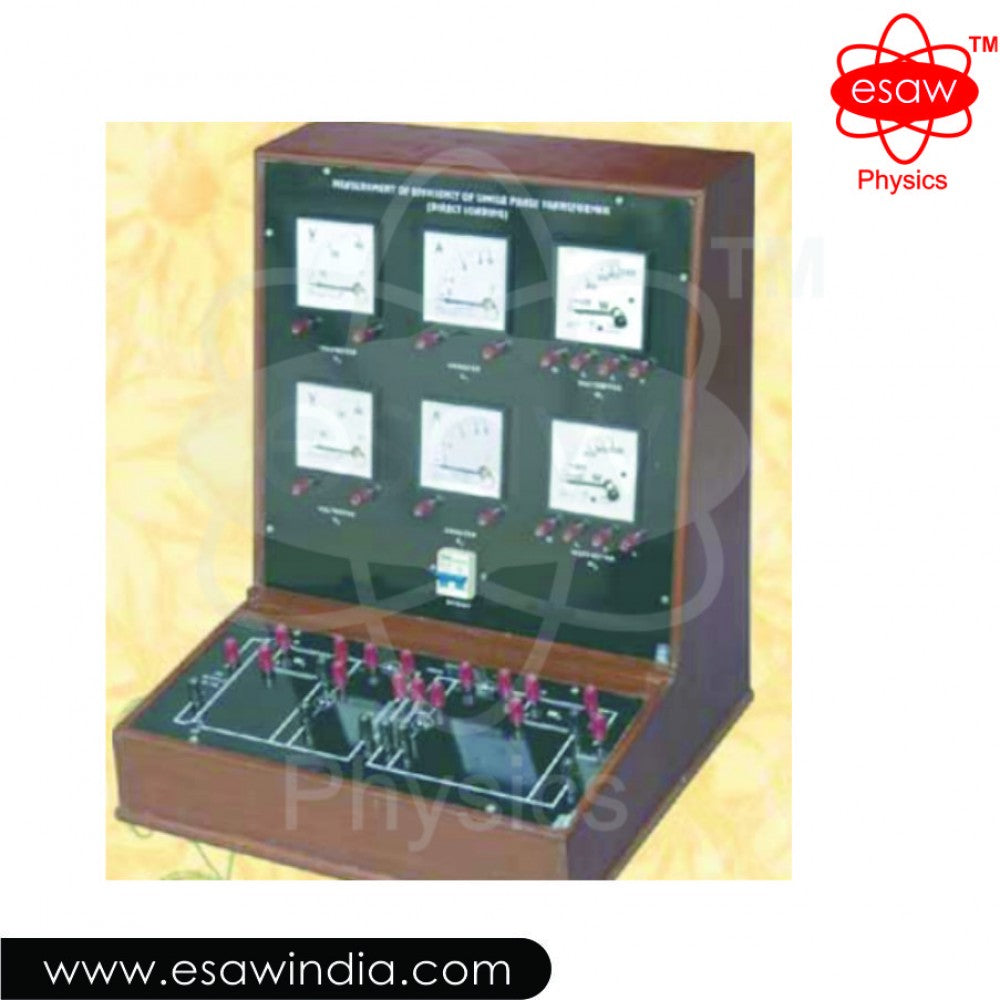

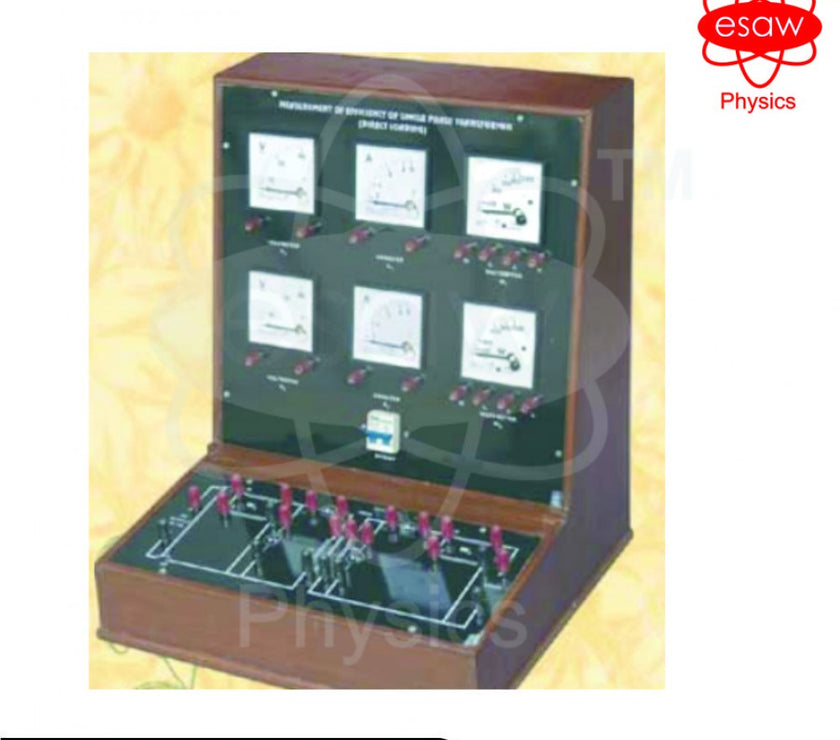

ESAW EEC-10649 Measurement of Efficiency of Single Phase Transformer

Technical Specifications:

• Two Nos. of Moving Coil Voltmeter of Range 300V A! of size 96*96mm provided with Input Terminals.
• Two Nos of Moving Coil Ammeter of Range 10A AC size 96*96mm provided with Input Terminals.
• Two Nos. of Single Phase Wattmeter of Range 2KW of size 96*96mm provided with Input Terminals.
• One No of Miniature Circuit Breaker of Range 10 Am (MCB/ DP) Provided on the Input Side.
• Circuit Diagram Printed on Bakelite Sheet front panels One No. of Single Phase Wattmeter of Range 75 Wat; with instrument connecting terminals.
• Panelboard of portable wooden panel box is in Tapered shape for better view angle.
• Dimensions: 470 x 460 x 620 mm (Lx Bx H).

• Power Requirement: Single Phase 220V AC.


Standard Accessories:

• Single-phase Variac 10 Amps. Cat No. 680 (e)

• Loading Rheostat 2.5 KW Single phase in 10 Steps off 250Watts.
• Single-phase Isolation Transformer of Rating 1KVA.
