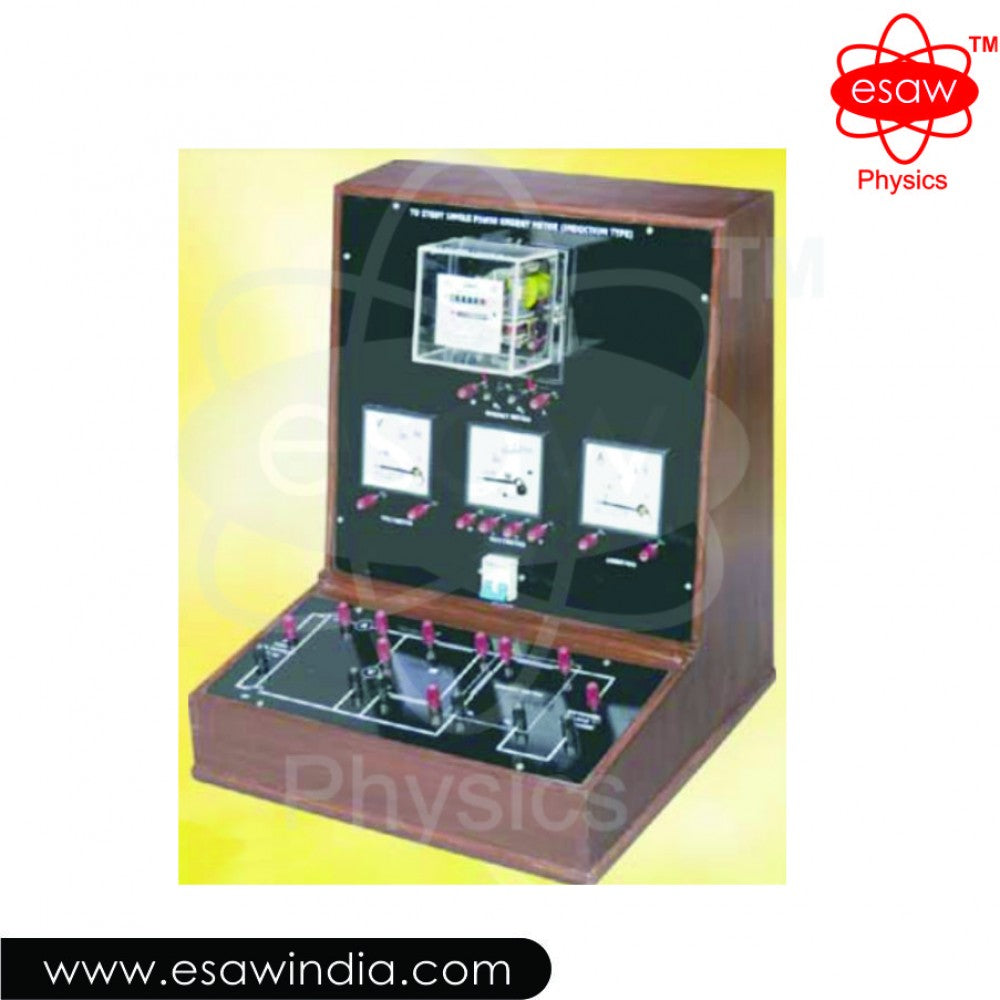

ESAW EEC-10669 Single Phase Energy Meter (Induction Type)

Technical Specifications:

• One No of Moving Coil Voltmeter of Range 300V AC of Size 96*96mmProvidedwith Input Terminals.

• One No of Moving Coil Ammeter of Range 10A AC of Size 96*96mmProvidedwith Input Terminals.
• One No of Single Phase Wattmeter of range 2KW of Size 96*96mm Provided with Input Terminals.
• One No Induction type Single Phase Energy Meter of range 5- 10A240V, 1200Rev/KWh.
• One No. of Miniature Circuit Breaker of Range 415V/ 63 Amps (MCB/DP) Provided on the Input Side.

• One No. of Single Phase Wattmeter of Range 500 Wate Circuit Diagram printed on Bakelite Sheet front panel With Instruments Connecting Terminals.

• Panelboard of portable wooden panel box is in Tappered shape for better view angle.

• Dimension: 470 x 460 x 620mm(L xBxH)

• Power Requirement: Single Phase 230VAC.

• Single point Patch cords for Interconnections

• (Electrical).
• Stop Watch Digital & Instruction Manual

• Dimensions(mm): 460(L) x 460(B) x635(H)


Standard Accessories:

• Single-phase Variac 10Amps.

• Loading Rheostat 2.5KW Single phase in 10 Steps of 250Watts.
