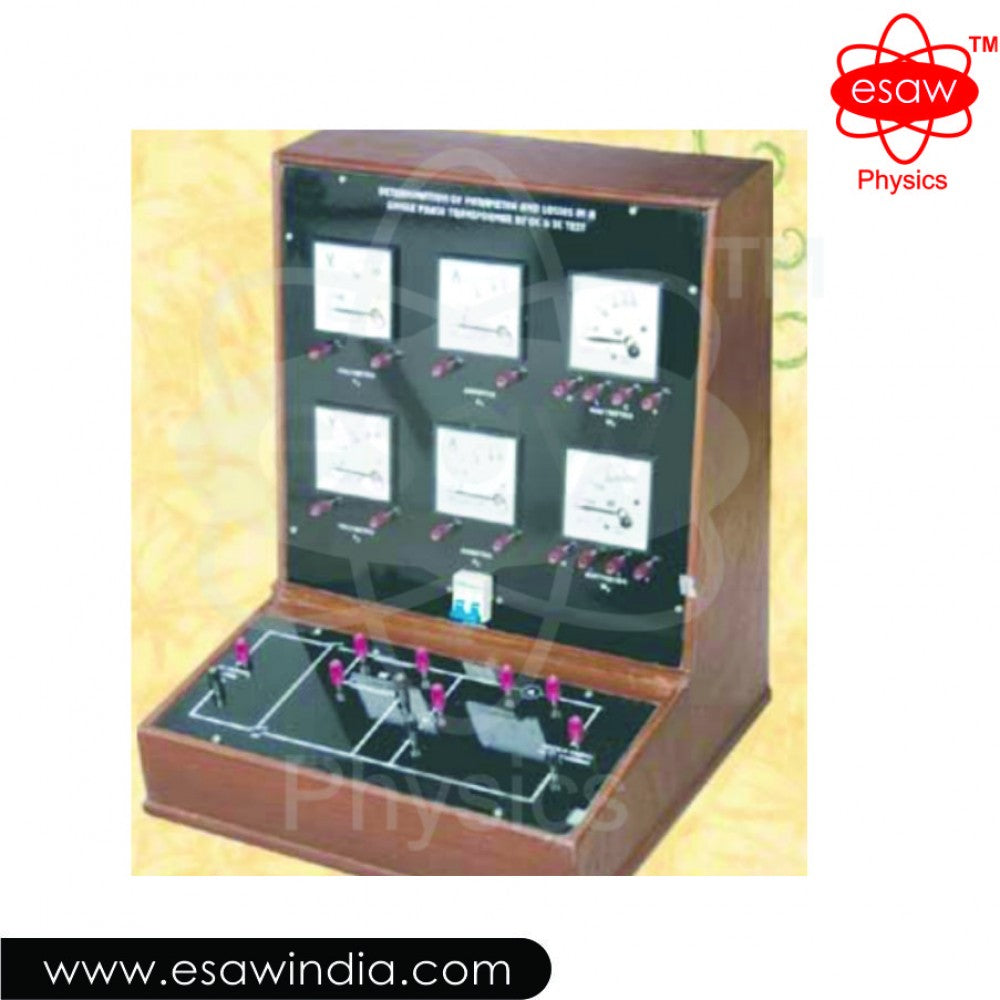

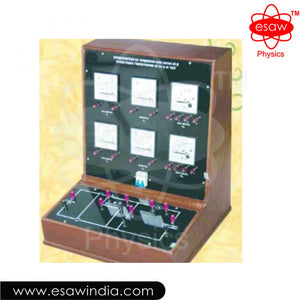

ESAW EEC-10659 Single Phase Transformer by Open Circuit and Short Circuit Test

Technical Specifications:

• One No. of Moving Coil Voltmeter of Range 50V AC of size 96*96mm Provided with Input Terminals.
• One No. of Moving Coil Voltmeter of Range 300V AC Size 96*96mm Provided with Input Terminals.
• One No. of Moving Coil Ammeter of Range 1A AC of Size 96*96mm Provided with Input Terminals.
• One No. of Moving Coil Ammeter of Range 10A AC of Size 96*96mm Provided with Input Terminals
• One No. of Miniature Circuit Breaker of Range 10A, (MCB/ DP) provided on the input side.
• Circuit Diagram Printed on Bakelite Sheet front panel with instrument connecting terminals.
• Panelboard of portable wooden panel box is in Tapered shape for better view angle.
• Dimensions: 470x460x620mm (LxBxH)

• Power Requirement: Single Phase 220V AC

• Single point Patchcords of Size 2.5mm for Interconnections (Electrical} Instruction Manual

Standard Accessories:

Single Phase Variac 10 Amps.
