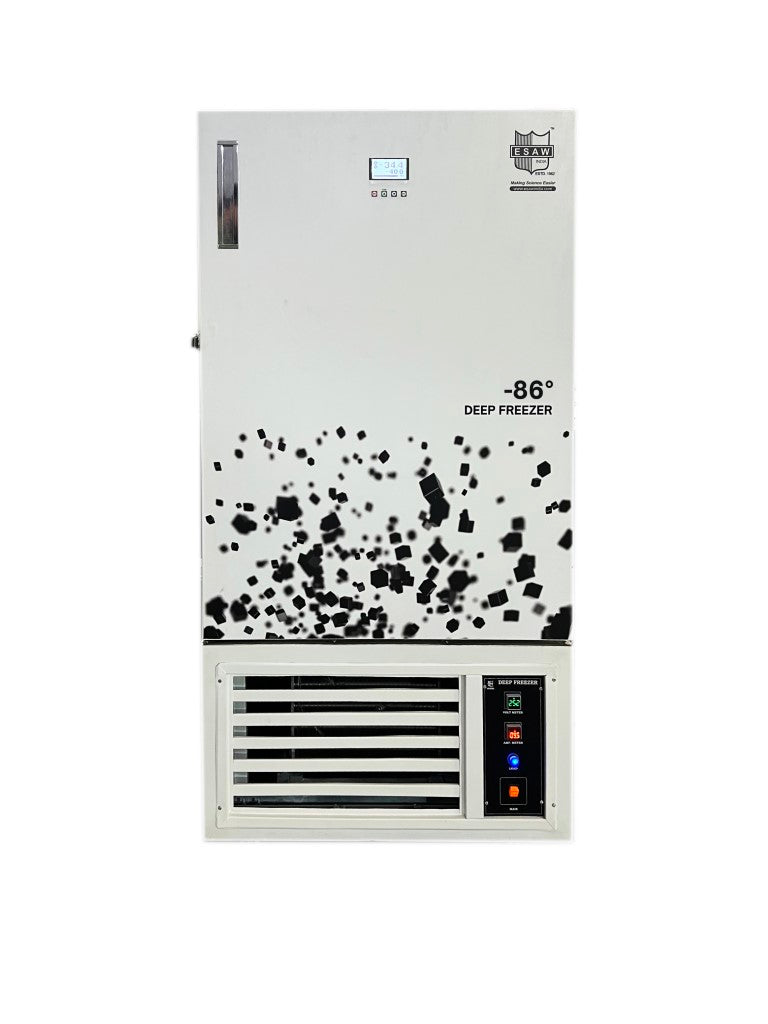

The ESAW ULTLDF-545L is designed for reliable ultra-low temperature storage where sample integrity, temperature stability and operational visibility are critical. Its -50°C to -86°C operating range, cascade cooling architecture and microcomputer control support consistent low-temperature performance.

KEY PERFORMANCE

Temperature range: -50°C to -86°C,

1°C increment Cooling: Cascade cooling system

Sensor: Platinum (Pt1000) temperature sensor

Insulation: Vacuum Insulation Panel (VIP), wall thickness ≤ 7 cm Refrigerant: CFC & HCFC free

Energy: Less than 10 kWh/day

Technical Specifications

Model - ULTLDF-545L ,Temperature Range-50°C to -86°C, 1°C increment

 Box Capacity - 350 boxes or more Temperature Sensor Platinum (Pt1000) temperature sensor Insulation Vacuum Insulation Panel (VIP),

 Shelves - 3 stainless-steel shelves

 Inner Doors - 2 independent, insulated & removable non-metallic, non-magnetic latch-based inner doors;

Dimension 770 × 875 × 1990 mm  Interior Dimension 630 × 600 × 1380 mm
