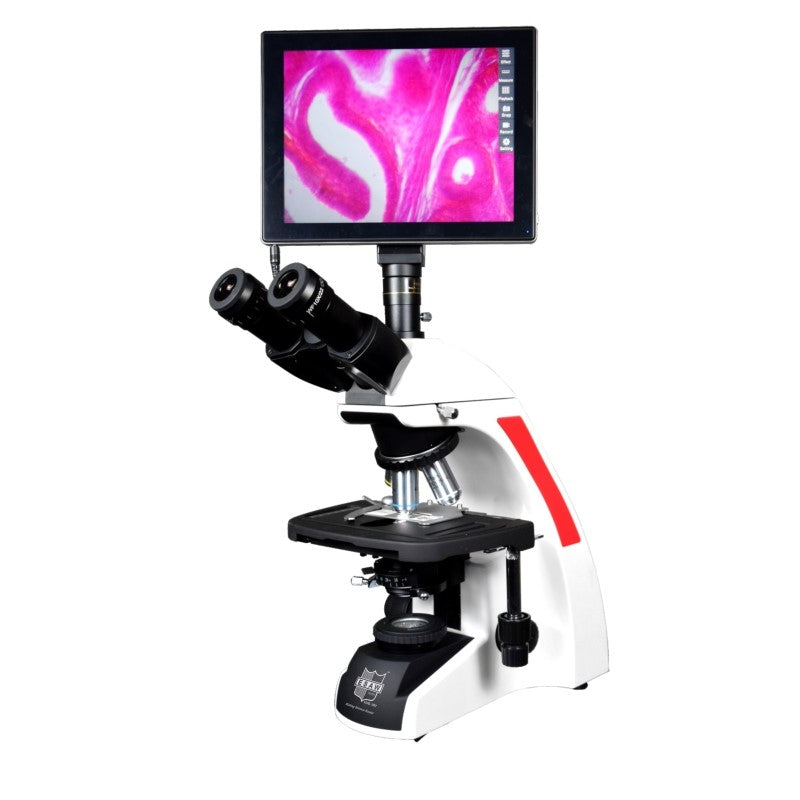

The ESAW Trinocular Microscope with Digital Display is a state-of-the-art teaching and research microscope designed for modern classrooms, universities, and advanced laboratories. Equipped with a 10.5-inch high-definition full-lamination touch screen Scopepad and an 8MP, 4K camera, this microscope allows students and researchers to capture, analyze, and share high-quality images and videos in real time.
With WiFi, HDMI, USB 2.0/3.0, and Ethernet connectivity, the microscope can directly project images onto monitors, TVs, or projectors, making it an ideal choice for collaborative learning and scientific presentations. The built-in Android 11 operating system with advanced Image Focus software offers powerful tools such as geometric measurements, image labeling, instant photography, 1080P video recording, and annotation features.
Perfectly suited as affordable lab equipment for schools, colleges, and medical institutions, the ESAW Trinocular Microscope ensures accurate, interactive, and export-quality performance. Trusted by educators, researchers, and industrial labs across India, USA, Europe, Africa, and Asia, it is the best choice for institutions seeking reliable digital microscopy.
Technical Specifications:
SPECIFICATION |
DETAILS |
Sensor Size |
1/2 inch |
Effective Pixel |
8 Million, 4K |
Display |
10.5-inch HD full-lamination touch screen |
Operating System |
Android 11 |
Output Interface |
USB 3.0 ×2, USB 2.0 ×1, HDMI, Gigabit Ethernet port |
Pixel Size |
2.0 µm × 2.0 µm |
Electricity |
DC-12V/2A |
Image Quality Adjustment |
Brightness, contrast, saturation, color temperature, mirroring, freeze |
Camera Function |
4K photo capture, 1080P video recording, instant preview |
UI Interface |
Mouse & touch operation |
Image & Video Storage |
SD card |
Labeling Function |
Point coordinates, crosshairs, text annotations |
Measurement Functions |
Line, curve, circle, polygons, rectangles, area, distance |
WiFi / Bluetooth |
Dual-band 2.4GHz/5GHz, Bluetooth 5.0 |
Dimensions |
238 × 51 × 206 mm |
Net Weight |
0.6 kg |
Standard Accessory |
DC-12V/2A power supply |
Key Features:
-
10.5” full-lamination HD touchscreen for real-time microscopy
-
8MP, 4K camera for high-resolution imaging and video
-
WiFi, HDMI, USB & Ethernet connectivity for easy data sharing
-
Built-in software for measurement, annotations & image analysis
-
Supports both stand-alone and networked operation
-
Export quality educational microscope, made in India
Real-World Applications:
-
Students: Interactive digital microscope for hands-on learning
-
Schools & Colleges: Ideal for science labs, classroom demonstrations & group studies
-
Medical & Nursing Colleges: Assists in pathology, anatomy, and clinical training
-
Research Labs & Industrial Centres: Accurate imaging for R&D, quality control, and documentation
👉 Discover more ESAW categories:
Brand: ESAW India
Catalog No.: ESAW IM-10D
GTIN/MPN: Available on request
Country of Origin: Made in India
Target Countries: India, USA, UK, Germany, France, Middle East, Africa, Asia
Product Category: Laboratory Microscopes
