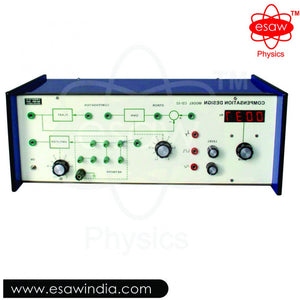

The ESAW Compensation Design Kit (EEC-10631) is a high-quality educational lab instrument designed to help students and researchers study control systems and transient response behaviors with precision. This trainer allows learners to analyze uncompensated systems and design compensation networks effectively.

Equipped with adjustable damping, variable gain amplifier, and built-in function generators, the kit provides hands-on learning for control system dynamics. It is widely used in engineering colleges, research centers, and advanced science laboratories across India and abroad.

Specifications:

• Simulated uncompensated system with adjustable damping

• Peak percent overshoot variable P: 20%–50%

• Steady-state error variables: 50%–0.5%

• Compensation network with variable gain amplifier (gain adjustable from 1 to 11)

• Built-in square and sine wave generators for transient & frequency response

• Frequency range: 25 Hz – 800 Hz (approx.)

• Essential accessory: CRO (Cathode Ray Oscilloscope)

Use Case Scenarios:

• Students: Learn fundamentals of control system design and compensation.

• Schools & Colleges: Ideal for electronics, physics, and engineering labs.

• Engineering & Technical Institutes: Enhances understanding of feedback systems and error control.

• Science & Research Labs: Useful for frequency response and stability analysis experiments.

• Industrial Labs: Reliable for training and advanced R&D applications.

The ESAW Compensation Design Kit is an affordable solution for labs in India and international markets. Institutions, bulk distributors, and resellers can buy ESAW Compensation Design Kit in bulk at competitive export prices.
