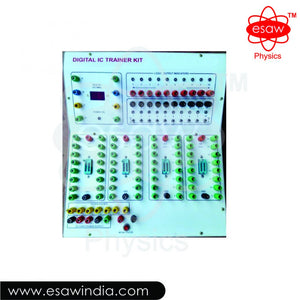

ESAW Digital Trainer Kit (EEC-11494)

It consist of fix voltage power supply of 5 volts for IC’s. Two number logic input switches and 1 number logic output indicator. All the above 5 gates are mounted on the panel with their respected 14 pin IC.

Every pin of each IC is connected to the socket with their respective pin numbers. Very useful kit to under stand the behaviors of each IC. For 5 number IC’s we are having 70 numbers ofsockets on the board. Supplied with leads& working manuals.
